Preliminary Work

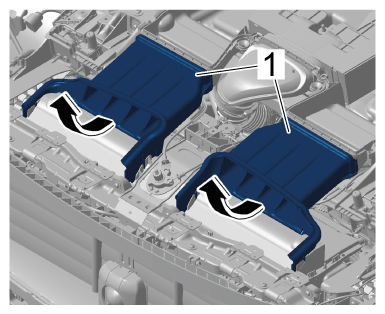

Remove air guides -1- (-Arrows- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guides
Remove front bumper.
> 631019 Removing and installing front bumper
Remove both headlights.
> 941519 Removing and installing headlights
Remove (upper) cooling-air flaps.
> 193519 Removing and installing (upper) cooling-air flaps
Remove distance measuring sensor.
> 278519 Removing and installing control unit for distance measuring sensor
Remove both charge-air coolers.
> 214319 Removing and installing charge-air cooler
Remove air cleaner cover.
> 242519 Removing and installing air cleaner housing
Drain coolant.
> 193817 Draining and tilling coolant
Drain refrigerant.
> 870317 Draining and tilling refrigerant R1234yf

> 870317 Draining and tilling refrigerant R134a
Remove front underbody cover.
> 519219 REMOVING AND INSTALLING FRONT COVER
