Installing Lock Carrier

Installation is performed in reverse order. Pay particular attention to the following:

1. Tighten fastening screws on the upper lock carrier to > Tightening torque 8 Nm (5.9 lb.)  according to the specified tightening sequence > Tightening sequence.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

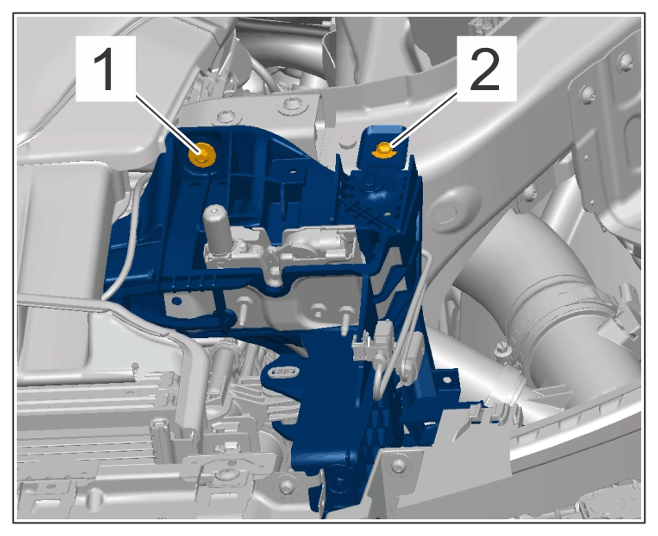

   Tightening sequence

2. Tighten fastening screws on lower lock carrier to > Tightening torque 23 Nm (17 lb.)  .
3. Tighten fastening screw securing refrigerant lines to condenser to > Tightening torque 9 (6.5 lb.) Nm  .
