Removing Alarm Siren

Information

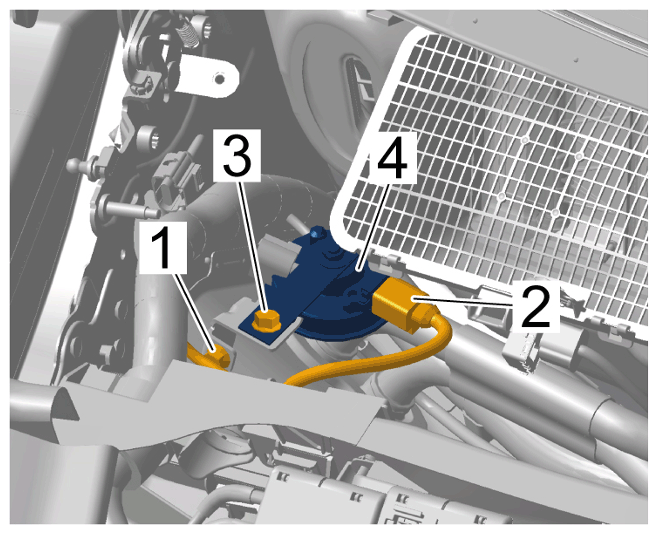

Shown on alarm horn. Method is identical for alarm siren.

1. Release and disconnect electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

2. Unclip electric wire harness -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness

3. Unscrew fastening screw -3-  and remove alarm siren -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Alarm siren
