Removing GPS Antenna For Era GLONASS Emergency Call System

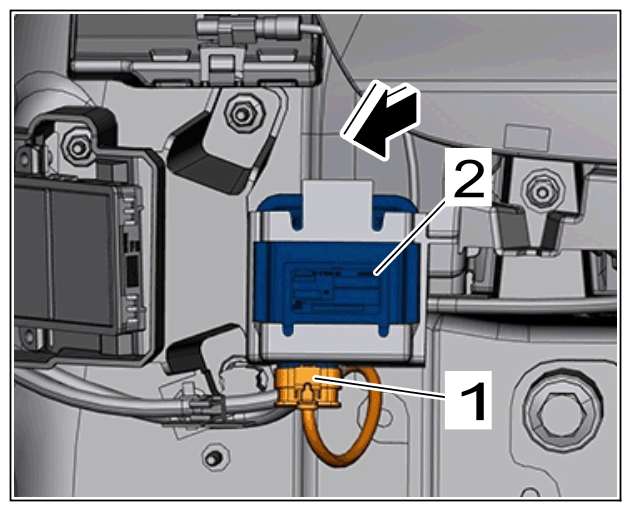

1. Release and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   GPS antenna for ERA GLONASS emergency call system

2. Unclip antenna for ERA GLONASS emergency call system -2-  from the bracket -Arrow-  and remove GPS antenna for ERA GLONASS system -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

GPS antenna for ERA GLONASS emergency call system
