Removing BLUETOOTH Control Unit (Piloted Parking)

1. Release electric plug connections and disconnect them.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

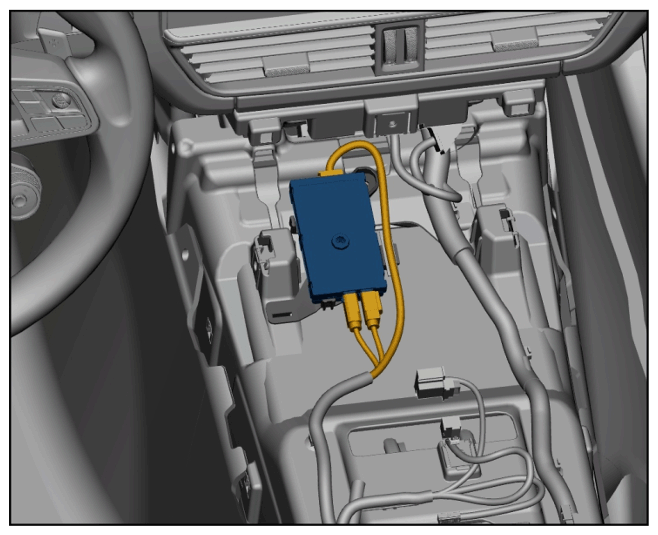

   Electric plug connections

2. Unclip Bluetooth control unit from its holder and remove it by pulling it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

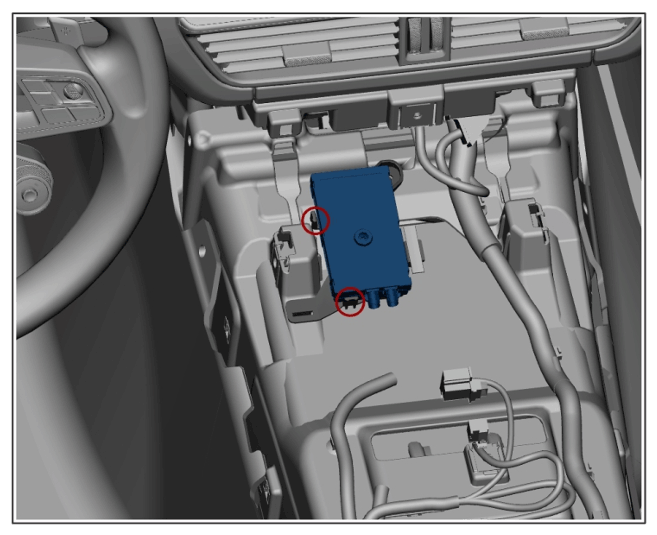

Bluetooth control unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

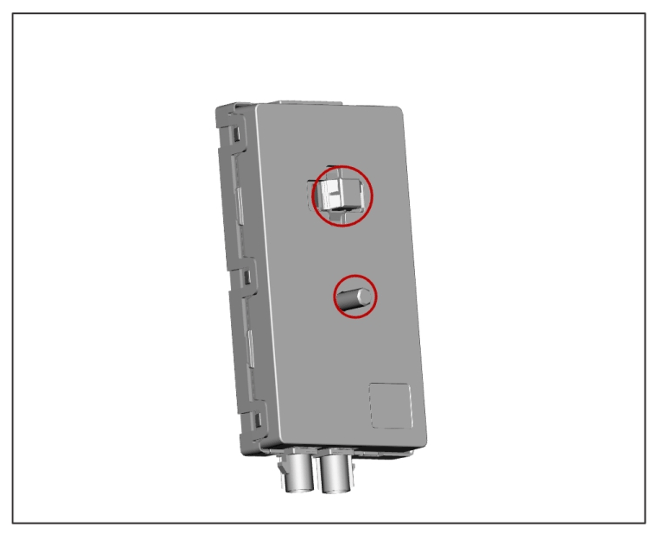

Bluetooth control unit (view from below)
