Removing Antenna Amplifier (Side Window)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. Switch off electrical loads before disconnecting or removing them.

Information

The number of electric plug connections will vary depending on equipment.

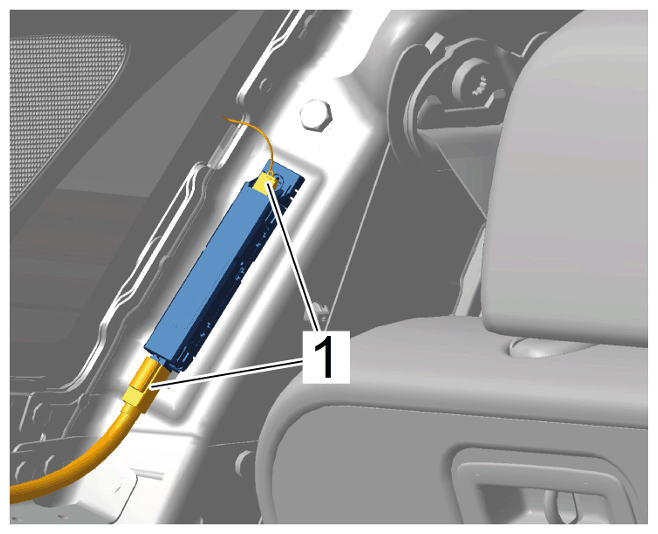

1. Release and disconnect electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Unscrew fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw

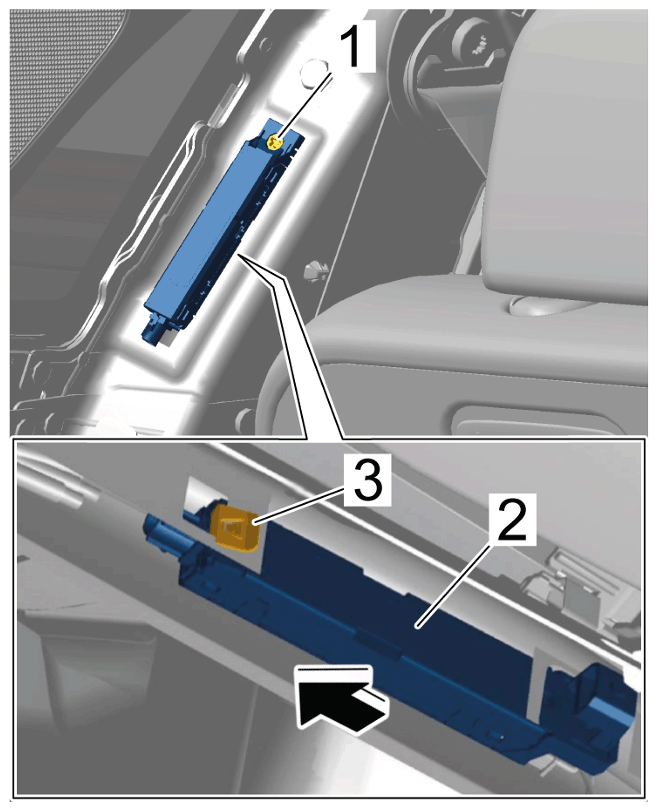

3. Slide antenna amplifier (on side window) -2-  with clip -3-  out of the bracket -Arrow-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna amplifier (side window)
