Removing DVD AUTOCHANGER

NOTIFICATION

Incorrect handling of optical waveguides

• Risk of damage to optical waveguide
  1. Observe the requirements for working with and installing optical waveguides.

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).
2. Unclip cover on DVD autochanger -1-  .

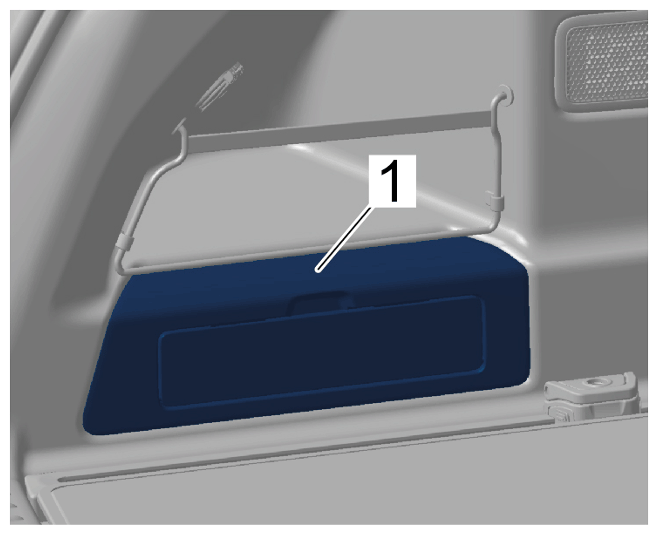

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on DVD autochanger

   Information

   Check positioning.

3. > 9570/1 - Disassembly tool  must be inserted into the DVD autochanger -1-  at the left and right -Arrows-  . Then pull out the DVD autochanger -1-  .

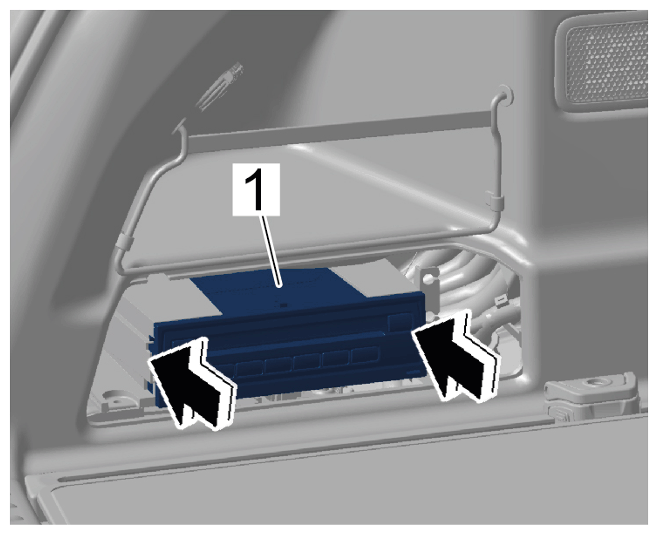

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   DVD autochanger

4. Release and disconnect electric plug connections -1-  on the DVD autochanger -2-  .

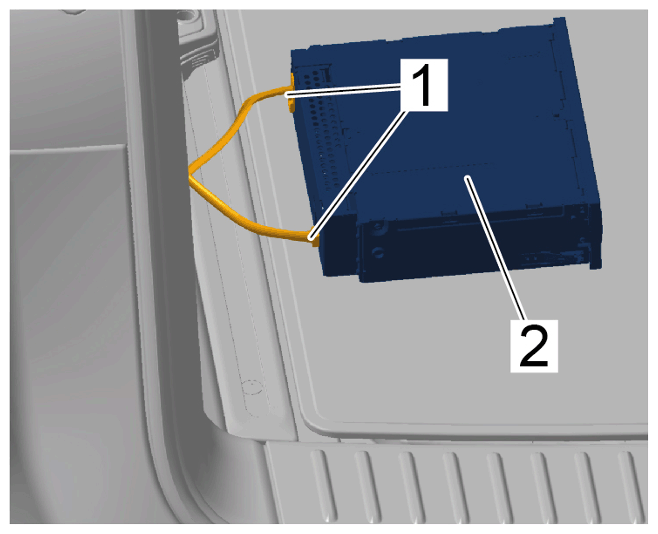

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
