WM, 914719 Removing And Installing Mobile Communication Antenna
>>
Removing Mobile Communication Antenna
>>
Removing Mobile Communication Antenna Gsm 1
Removing Mobile Communication Antenna Gsm 1

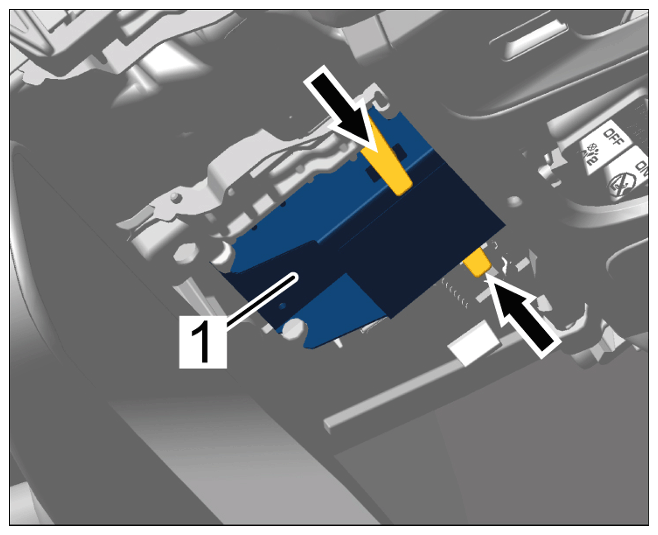

Unclip mobile communication antenna GSM 1
-1-Arrows-
and release and disconnect electric plug connection.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile communication antenna GSM 1
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
