Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws for loudspeaker booster Item 3 Tightening torque 6 Nm (4.5 ftlb.)

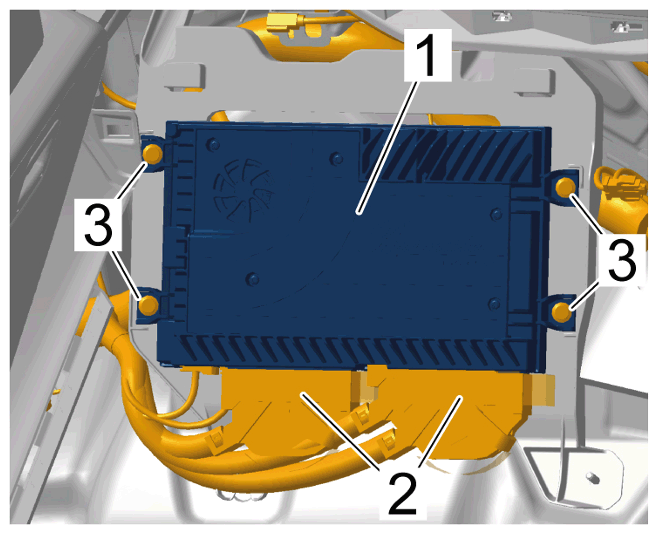

G15231021Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loudspeaker booster
