Removing Loudspeaker Booster

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. Switch off electrical loads before disconnecting or removing them.

Information

The number of electric plug connections will vary depending on equipment.

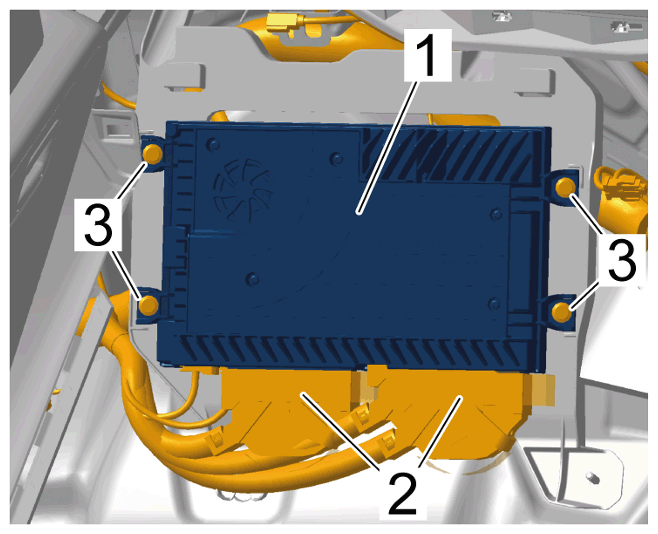

1. Release and disconnect electric plug connections -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Unscrew fastening screws -3-  and remove loudspeaker booster -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
