Removing Rear Loudspeaker (In Door Panel)

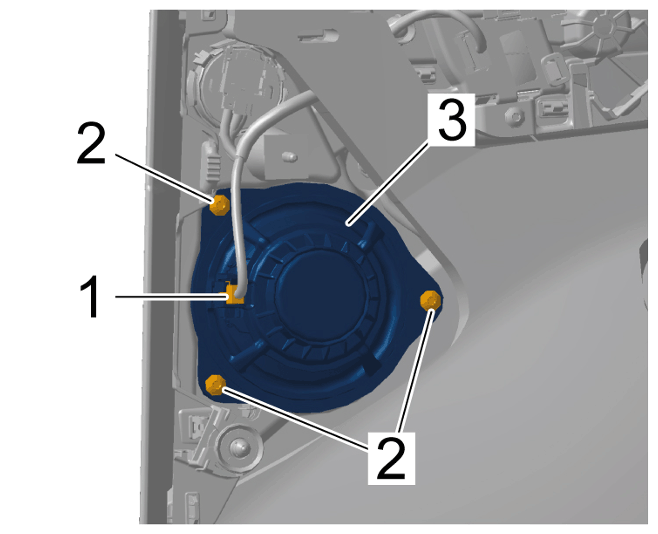

  1. Release and unplug electric plug connection -1-  .
    G15231001Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unscrew fastening screws -2-  .
    G15231002Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  3. Remove rear loudspeaker (in door panel) -3-  .
    G15231003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear loudspeaker (door panel)
