Removing Front Loudspeaker (In Door Panel)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. Switch off electrical loads before disconnecting or removing them.

1. Release and disconnect electric plug connection for front loudspeaker (in door panel) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

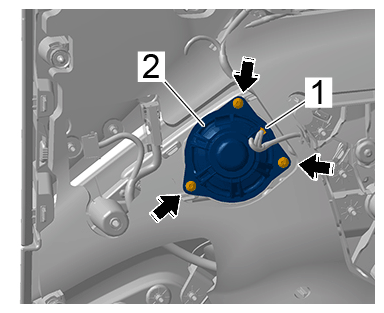

   Electric plug connection

   1. 1.1  Release and disconnect electric plug connection for front loudspeaker (in door panel) -1-  .
   2. 1.2  Unscrew fastening screws -Arrows-  .
2. Remove front loudspeaker (in door panel).
