Removing Front Loudspeaker (In Dashboard) At The Side On Vehicles With Sound Package 1/Sound Package (I-No. 9VK)

Removing front loudspeaker (in dashboard) at the side on vehicles with Sound package 1/sound package (I-no. 9VK)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Remove the ignition key and switch off load before disconnecting or removing load.

1. Remove front loudspeaker (in dashboard) at the side -1-  .

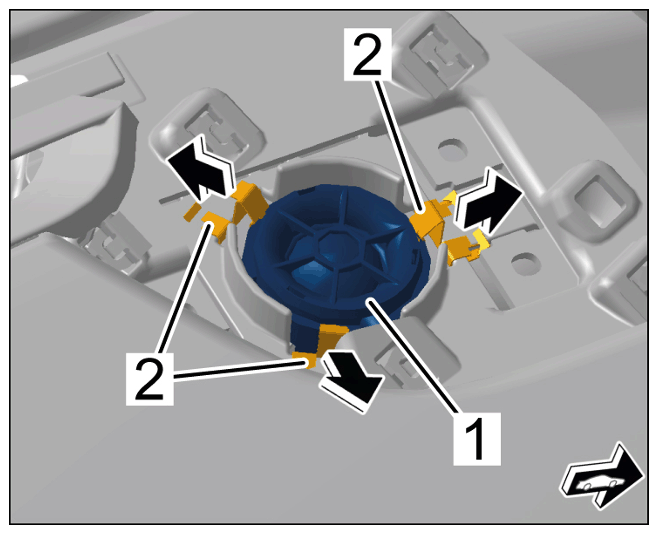

   1. 1.1  Open clamps -2-  (-Arrows-  ).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Clamps

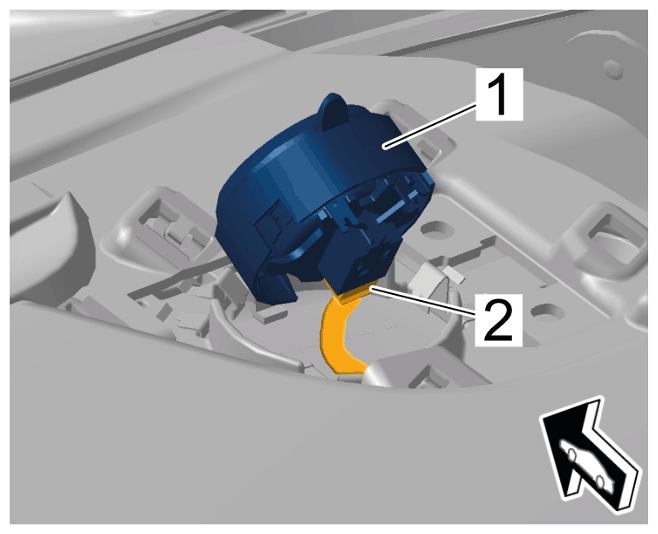

   2. 1.2  Loosen front loudspeaker (in dashboard) at the side -1-  until the electric plug connection -2-  is accessible.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front loudspeaker (in dashboard) at the side

   3. 1.3  Release and unplug electric plug connection -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front loudspeaker (in dashboard) at the side

   4. 1.4  Remove front loudspeaker (in dashboard) at the side -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front loudspeaker (in dashboard) at the side
