Removing Front Loudspeaker (In Dashboard) At The Centre On Vehicles With Sound Package 1/Sound Package (I-No. 9Vk)

Removing front loudspeaker (in dashboard) at the centre on vehicles with Sound package 1/sound package (I-no. 9VK)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Remove the ignition key and switch off load before disconnecting or removing load.

1. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

2. Remove front loudspeaker (in dashboard) at the centre -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

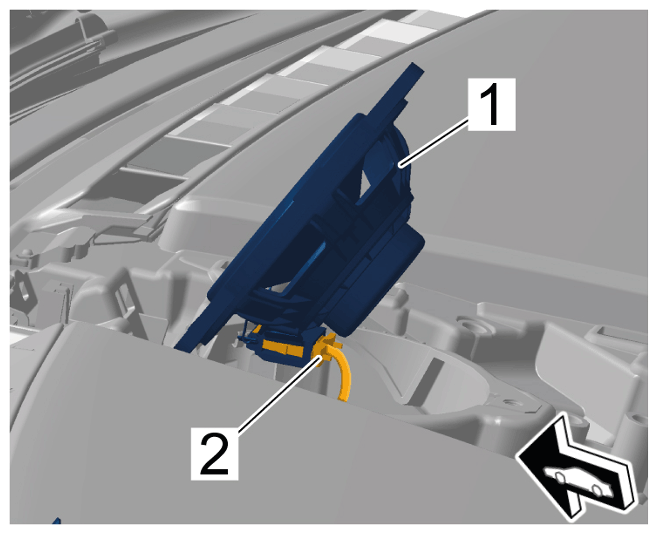

   Front loudspeaker (in dashboard) at the centre

   1. 2.1  Loosen front loudspeaker (in dashboard) at the centre -1-  until the electric plug connection -2-  is accessible.
   2. 2.2  Release and unplug electric plug connection -2-  .
   3. 2.3  Remove front loudspeaker (in dashboard) at the centre -1-  .
