Removing Front Loudspeaker (In Dashboard) At The Centre On Vehicles With BURMESTER High-End Sound System (I-No. 9VJ): Notes

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Remove the ignition key and switch off load before disconnecting or removing load.

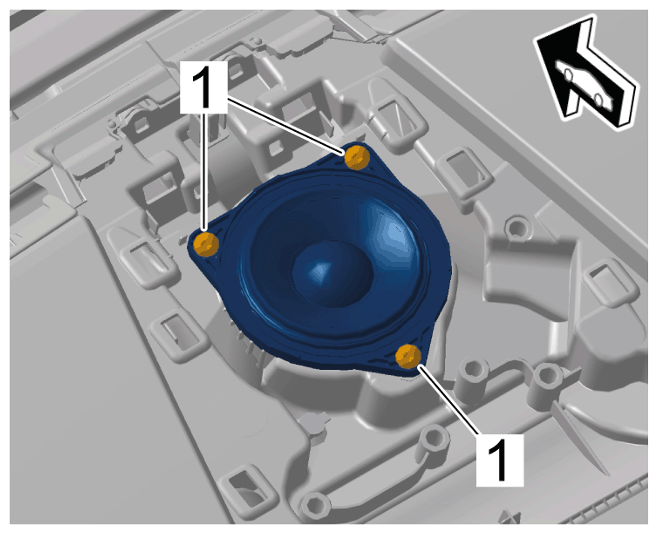

1. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

2. Remove front loudspeaker (in dashboard) at the centre -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front loudspeaker (in dashboard) at the centre

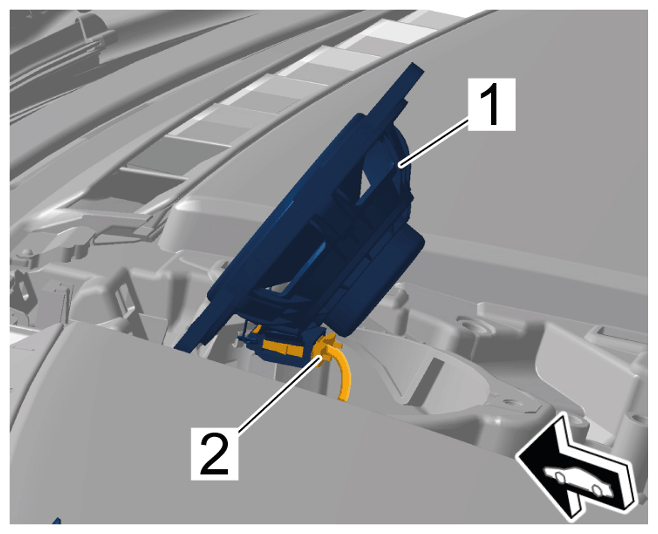

   1. 2.1  Loosen front loudspeaker (in dashboard) at the centre -1-  until the electric plug connection -2-  is accessible.
   2. 2.2  Release and unplug electric plug connection -2-  .
   3. 2.3  Remove front loudspeaker (in dashboard) at the centre -1-  .
3. Remove front loudspeaker (in dashboard) at the centre -1-  .

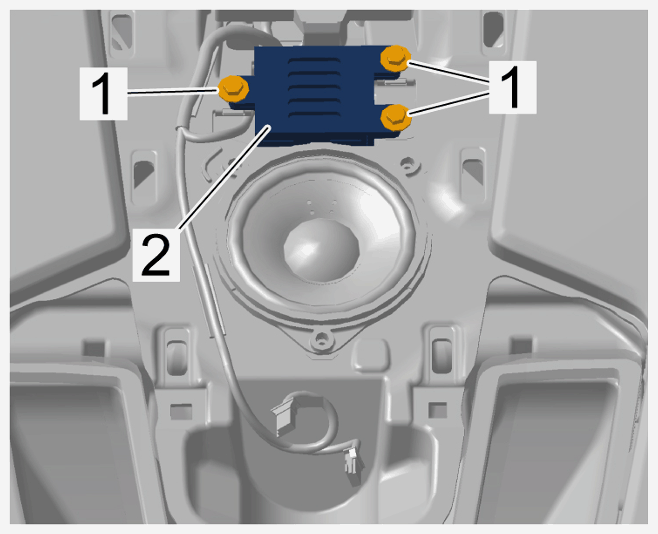

   1. 3.1  Unscrew fastening screws -2-  .
   2. 3.2  Pull out front loudspeaker (in dashboard) at the centre -1-  until the electric plug connection is accessible.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front loudspeaker (in dashboard) at the centre

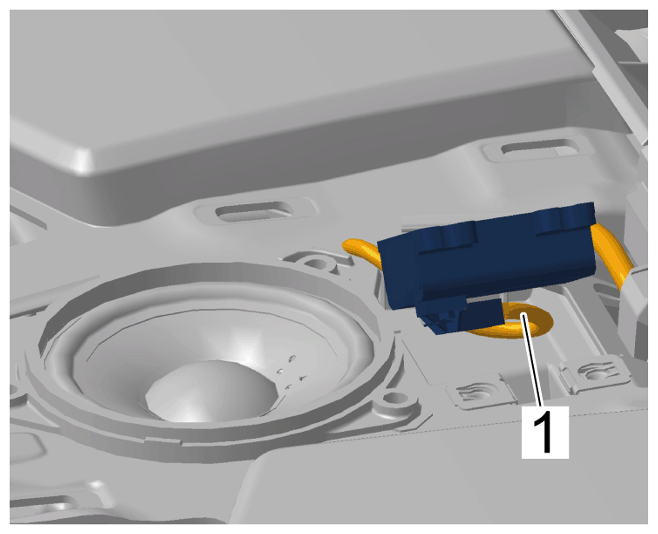

   3. 3.3  Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

4. Remove front loudspeaker (in dashboard) at the centre.
