Removing Front Loudspeaker (In Dashboard) At The Side On Vehicles With Burmester High-End Sound System (I-No. 9Vj)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Remove the ignition key and switch off load before disconnecting or removing load.

1. Remove front loudspeaker (in dashboard) at the side -1-  .
   1. 1.1  Unscrew fastening screw -2-  .
   2. 1.2  Loosen fastening screws -1-  until the front loudspeaker (in dashboard) at the side -3-  can be pulled out.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

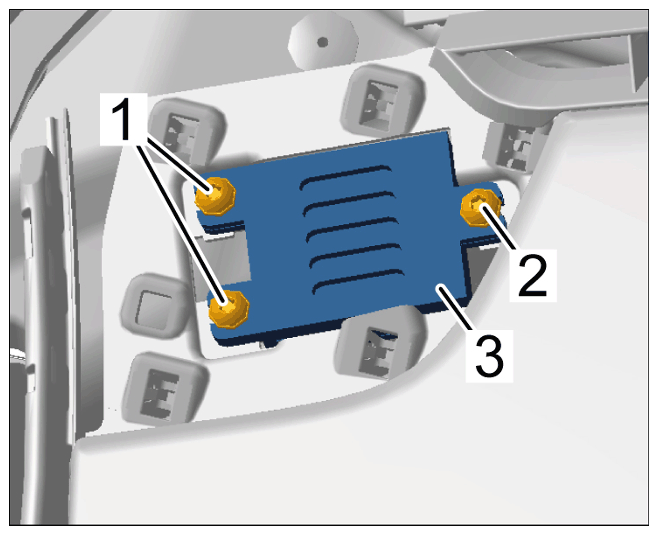

      Front loudspeaker (in dashboard) at the side

   3. 1.3  Pull out front loudspeaker (in dashboard) at the side until the electric plug connection -1-  is accessible.
   4. 1.4  Release and unplug electric plug connection -1-  .
   5. 1.5  Remove front loudspeaker (in dashboard) at the side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

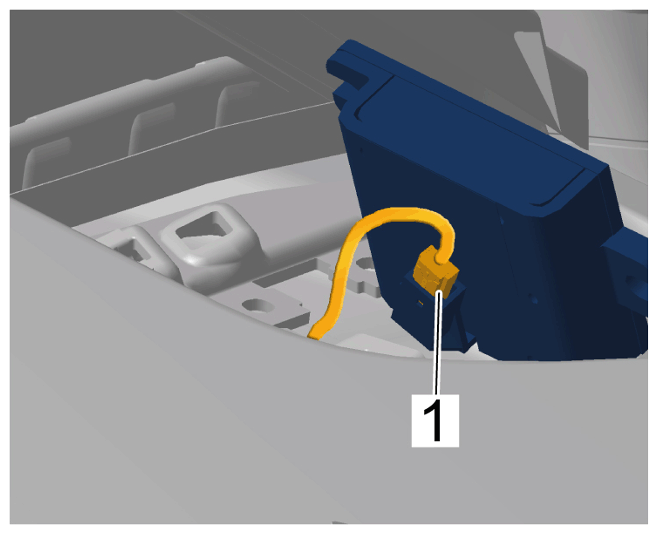

Electric plug connection
