Removing Front Loudspeaker (A-Pillar)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. Remove the ignition key and switch off load before disconnecting or removing load.

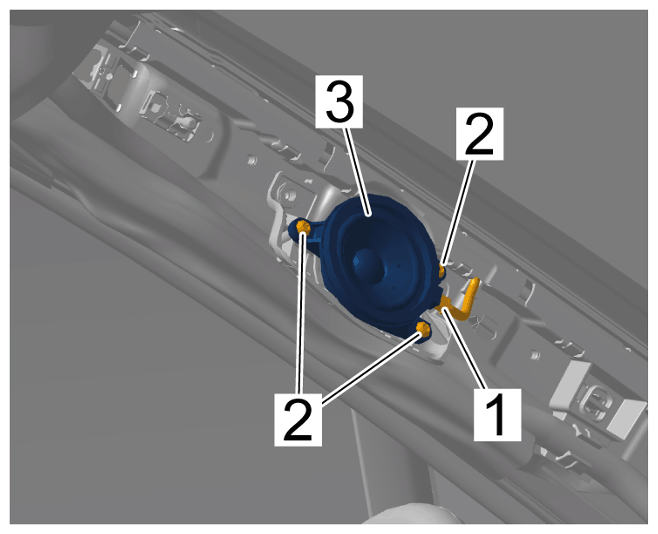

1. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

2. Unscrew fastening screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

3. Remove front loudspeaker (A-pillar) -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front loudspeaker (A-pillar)
