Removing SDARS Antenna

  1. Unclip SDARS antenna -1-  from the tailgate.
    G15230966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    SDARS antenna

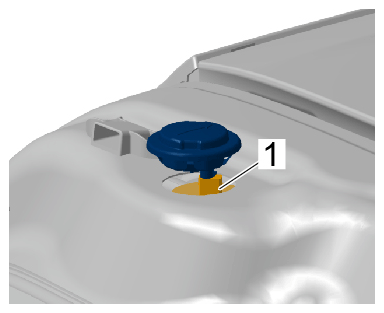

  2. Release and unplug electric plug connection -1-  .
G15230967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
