WM, 913819 Removing And Installing SDARS Antenna
>>
Installing SDARS Antenna
Installing SDARS Antenna
Installation is performed in reverse order. Pay particular attention to the following:

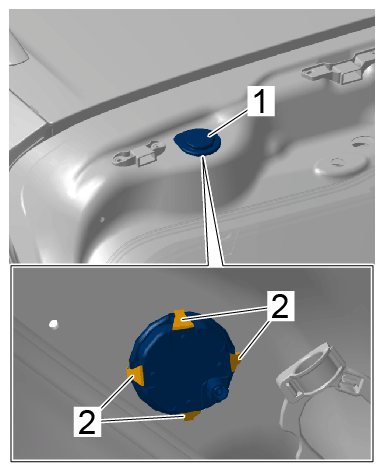

Check retaining lugs
-2-
on the SDARS antenna
-1-
for damage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
SDARS antenna

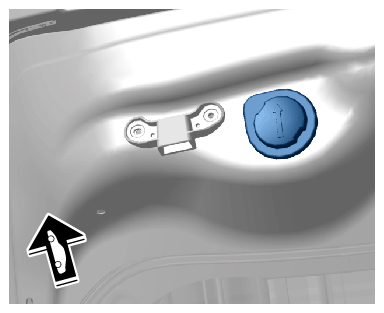

The arrow on the SDARS antenna must be pointing in direction of travel. > Installation direction
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation direction
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
