Removing Subwoofer (BURMESTER)

NOTIFICATION

Incorrect handling of components

• Risk of irreparable damage to electric and electronic components
• Reduced functionality
  1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m) before removing the loudspeakers.

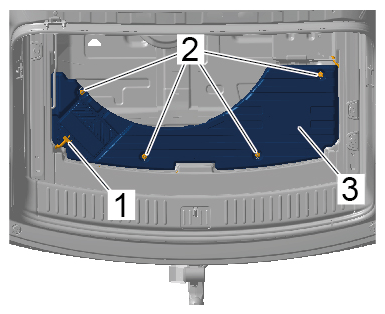

1. Screw off fastening nuts -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts

2. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

3. Remove subwoofer (Burmester) -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Subwoofer (Burmester)
