Removing Subwoofer (BOSE)

NOTIFICATION

Incorrect handling of components

• Risk of irreparable damage to electric and electronic components
• Reduced functionality
  1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m) before removing the loudspeakers.

1. Screw off fastening nuts -2-  .

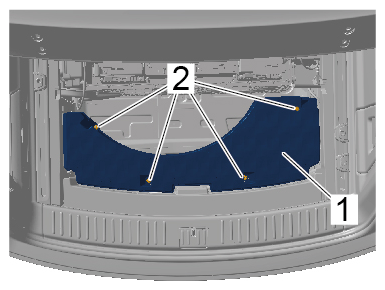

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts

2. Remove subwoofer (Bose) -1-  .

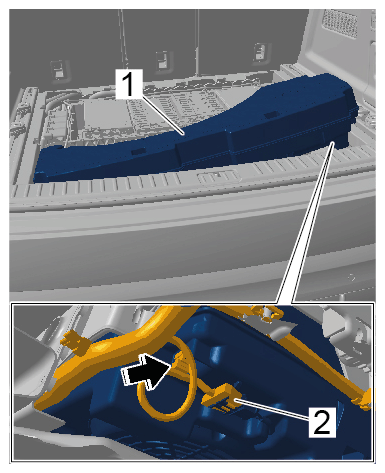

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Subwoofer (Bose)

   1. 2.1  Lift out subwoofer (Bose) -1-  until the electric plug connection -2-  is accessible.
   2. 2.2  Unclip wire harness -Arrow-  .
   3. 2.3  Release and unplug electric plug connection -2-  .
   4. 2.4  Remove subwoofer (Bose) -1-  .
