Removing GPS Antenna

1. Remove GPS antenna -2-  .
   1. 1.1  Open clamp -1-  and guide GPS antenna -2-  out of the holder.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

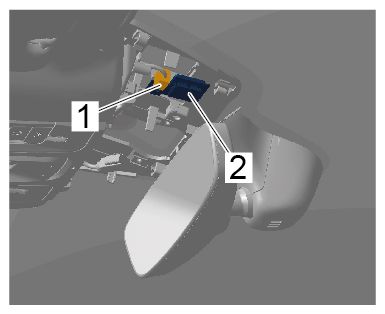

      Clamp on GPS antenna

   2. 1.2  Release and disconnect electric plug connection -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection for GPS antenna

   3. 1.3  Remove GPS antenna -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

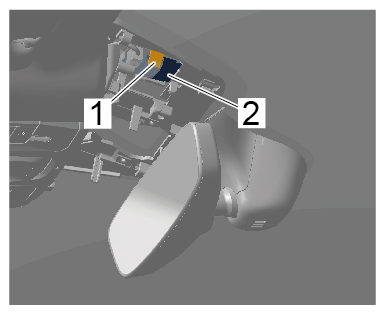

GPS antenna
