Preliminary Work

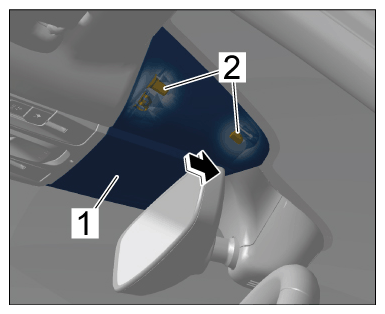

1. Unclip cover on camera -1-  by pulling it forward -Arrow-  and push it out of the guide lugs -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on camera

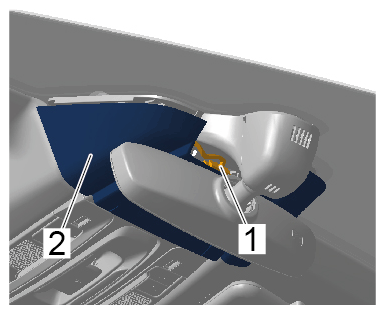

2. Disconnect electric plug connection -1-  on camera cover -2-  and remove camera cover -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
