Installing Automatic Transmission

Information

• New labels must be affixed to the new components when replacing selected components.

These labels are required by law in China, for example - and in other countries soon. Ask your importer about the current country-specific specifications.

The labels must be ordered via PET based on vehicle and component-relevant data.

• All required labels show vehicle-specific information.
• These labels are not yet affixed to the drive spare parts when they are delivered. They must be affixed during repairs.

The following components must meet the relevant labelling specifications:

• High-voltage warning label on power electronics and electric motors at front and rear.
• Assembly label on connection cover on the front axle and rear axle.
• China high-voltage warning label on power electronics and electric motors at front and rear.
• China identification plate on power electronics and electric motors at front and rear.
• EIC (engine identification code) label for front e-drive and on front-axle subframe.
• China performance data label.
• VIN label on rear axle differential.
• Vehicle system performance label on B-pillar.

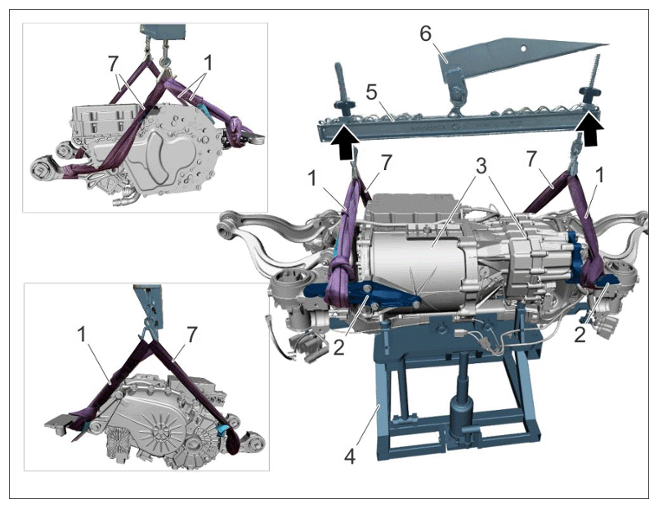

1. Lift the rear-axle module -3- with the help of another person  and carefully place it on the rear axle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lifting the rear-axle module with round slings and workshop crane

2. Remove tools and round slings and move workshop crane out of the work area.
3. Secure wire harness to the rear-axle module.

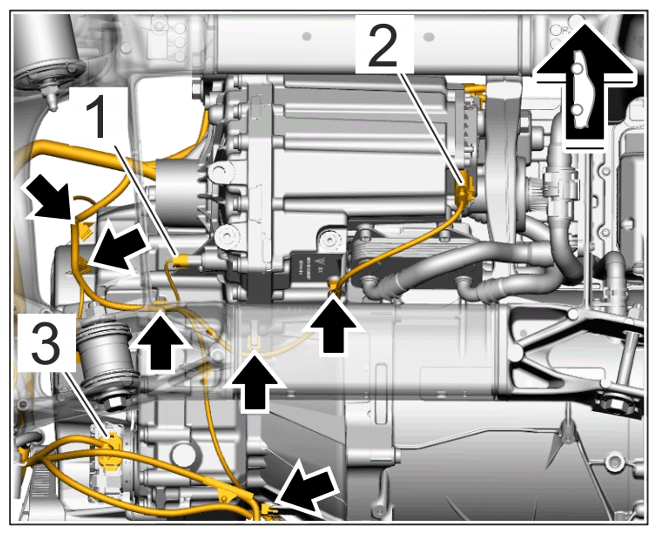

1. 3.1 Bottom:  Insert electric plug connections -1 to 3-  , clip in wire harness -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness on the rear-axle module - Bottom

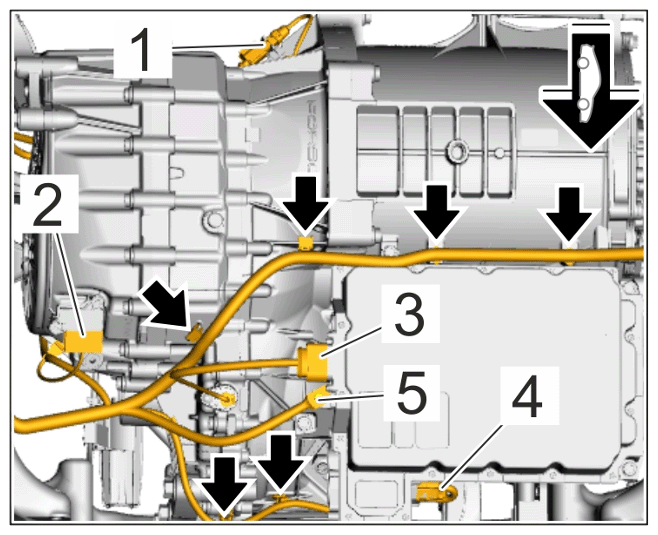

2. 3.2 Top:  Insert electric plug connections -1 to 4-  , clip in wire harness -Arrows-  . Fit and tighten screw -5-  .

   > Tightening torque 20 Nm (15 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness on the rear-axle module - Top
