Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Selector support to moulding Screw, M5 x 16 - Item 4 Tightening torque 3 Nm (2 ftlb.)

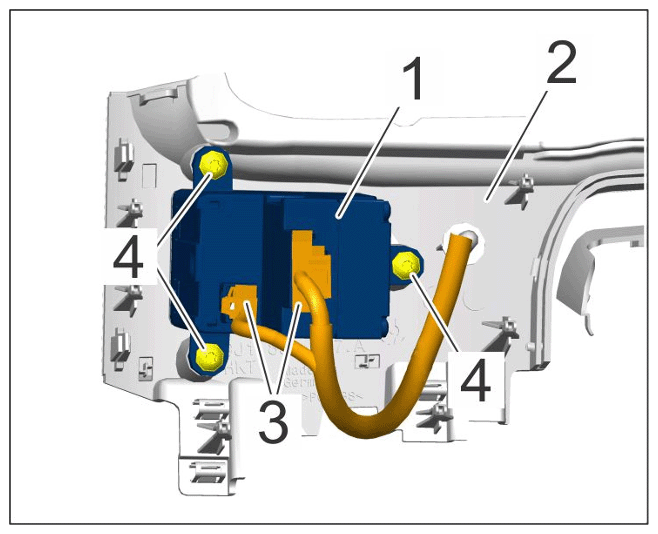

G15552218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Selector support mounting (reverse side of moulding)
