Removing Sensor For Body

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

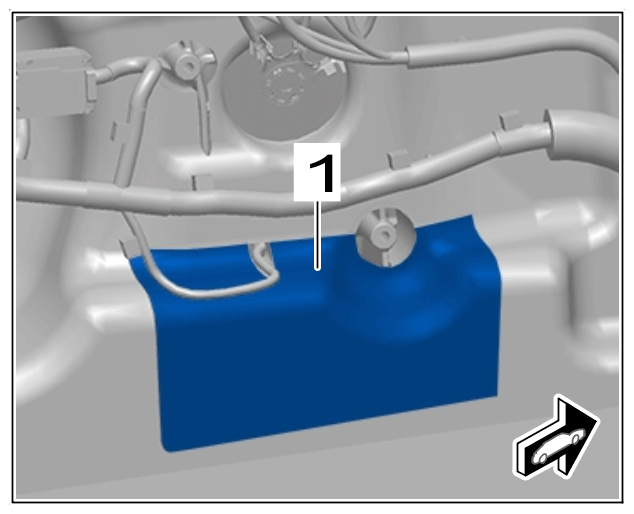

Open service opening -1- in sound absorber.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Service opening in sound absorber
Remove sensor for body -1- .
1. 2.1 Release and disconnect electric plug connection -2- .
2. 2.2 Unscrew screw -3- .
3. 2.3 Remove sensor for body -1- from holder -4- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sensor for body
