Technical Values

Location	Description	Type	Basic value
Air-spring strut to body	Initial tightening/Nuts/Item 3/Always replace nuts following removal	Tightening torque	40 Nm (30 ftlb.)

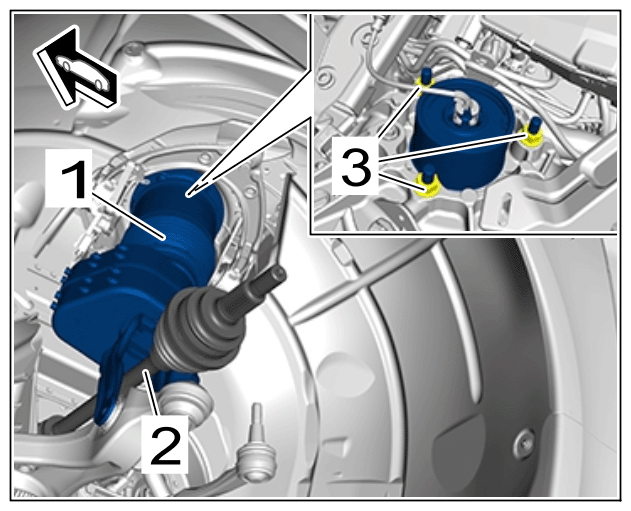

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air-spring strut and drive shaft
Air-spring strut to body	Final tightening/Nuts/Item 3/Always replace nuts following removal	Torque angle	+ 45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air-spring strut and drive shaft
Air-spring strut fork to lower trailing arm	Initial tightening/Nut/Item 3/Always replace threaded connection following removal	Tightening torque	90 Nm (67 ftlb.)

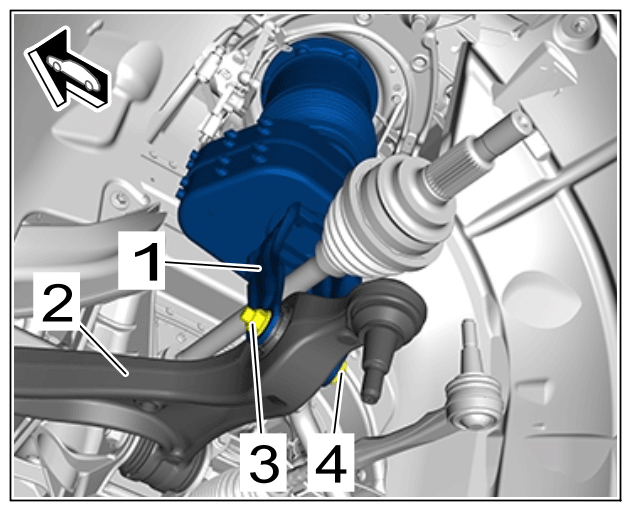

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air-spring strut fork
Air-spring strut fork to lower trailing arm	Final tightening/Nut/Item 3/Always replace threaded connection following removal	Torque angle	+ 120 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air-spring strut fork
Air line to front air-spring strut	Voss threaded joint - Item 3	Tightening torque	3 Nm (2 ftlb.)

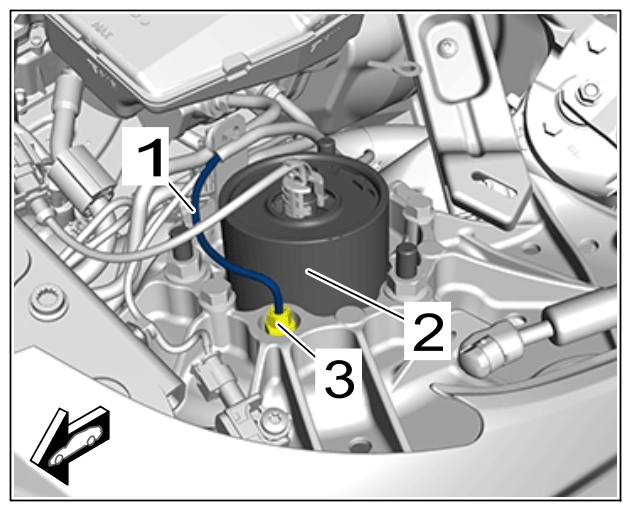

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air line on air-spring strut
