Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

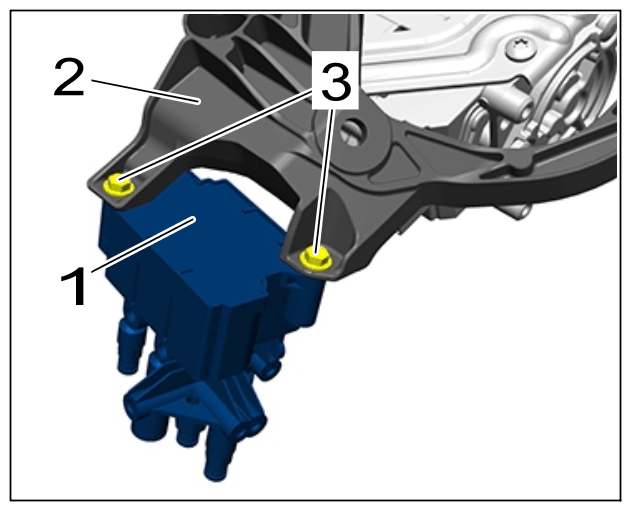

| Screws securing valve unit to holder | Screw - Item 3 | Tightening torque | 5 Nm (3.5 ftlb.) | ||
|
Valve unit |
|||||
| Pressure accumulator line to valve unit | Voss threaded joint - Item 5 | Tightening torque | 3.5 Nm (2.6 ftlb.) | ||
| Air lines to valve unit and air spring | Voss threaded joint - Item 4 | Tightening torque | 2.3 Nm (1.7 ftlb.) | ||
