Removing Valve Unit

Information

• Before removing air spring system components (compressor, valve unit), always disconnect the air lines on the front air-spring strut first before detaching the lines at the components  .
• Only loosen the Voss threaded joint!

Information

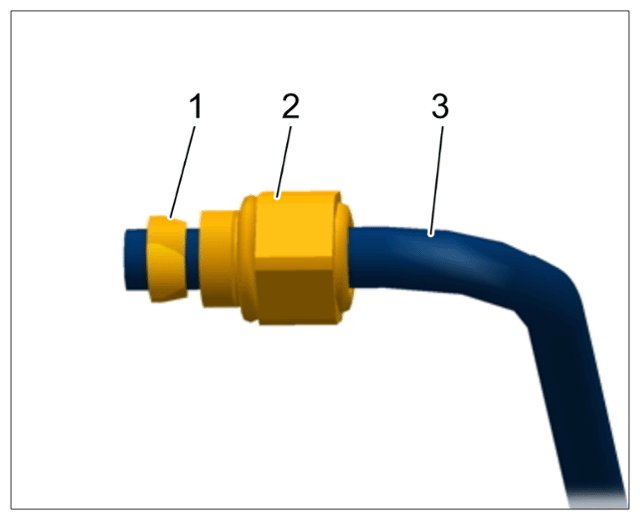

The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air line

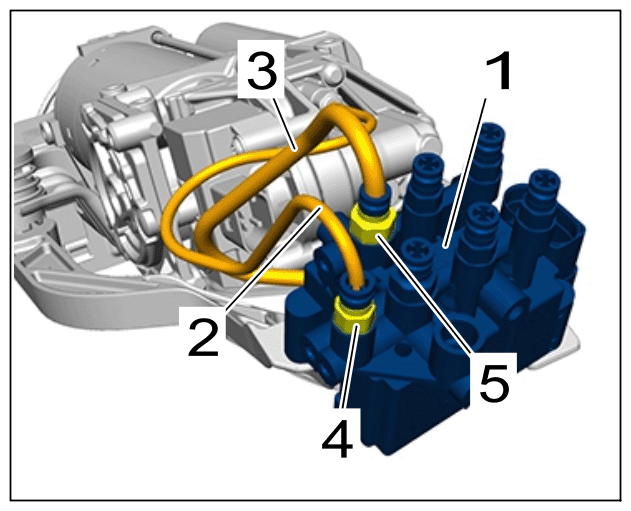

1. Disconnect air lines -2 and 3-  from valve unit -1-  .
   1. 1.1 Unscrew Voss threaded joints -4 and 5-  and pull off air lines -2 and 3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air line on valve unit

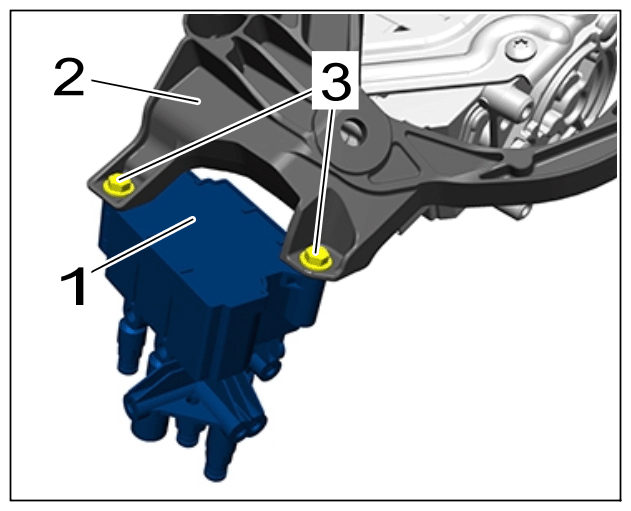

2. Remove valve unit -1-  from compressor holder -2-  .
   1. 2.1 Unscrew screws -3-  .
   2. 2.2 Remove valve unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Valve unit
