Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Screw securing refrigerant line (pressure line) to heat exchanger (ICond) | Item 6 | Tightening torque | 20 Nm (15 ftlb.) | ||
|

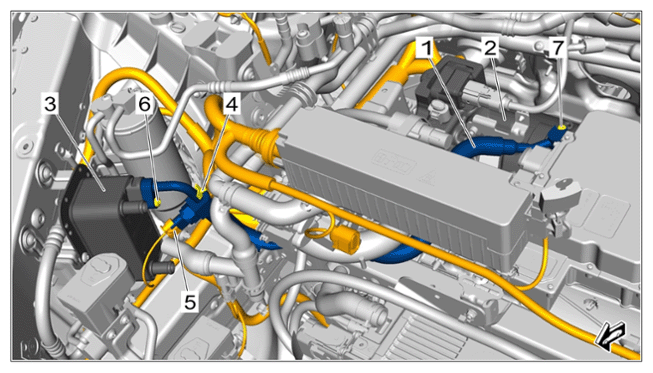

Refrigerant line section from air-conditioning compressor to heat exchanger (ICond) |
|||||
| Screws securing refrigerant line to valve EAV2 and EAV3 | Item 2 and 3 | Tightening torque | 8 Nm (6 ftlb.) | ||
|

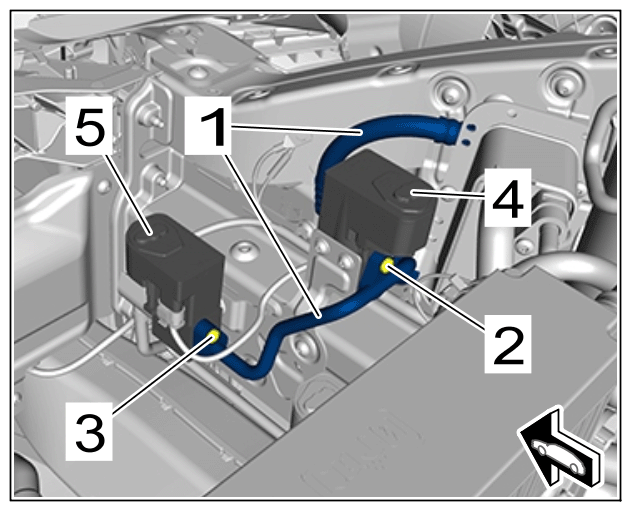

Refrigerant line section from heat exchanger (ICond) to shut-off valve |
|||||
| Screw securing heat exchanger (Icond)/desiccator holder to body | Item 2 | Tightening torque | 8 Nm (6 ftlb) |
