Removing Rear Air-Conditioning Control (Seat Heating)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

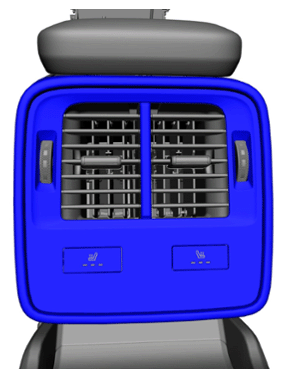

Rear centre console trim

1. 1.1  Release locking lugs on rear centre console air vent trim.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

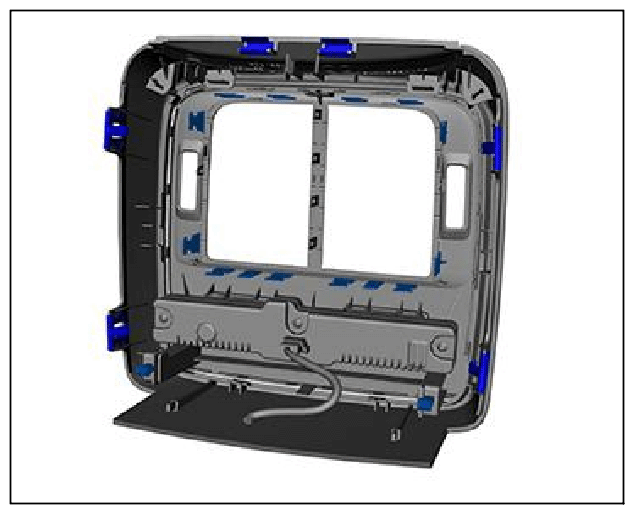

   Mounting for rear centre console trim.

2. 1.2  Remove rear centre console air vent trim until electric plug connection for rear air-conditioning control (seat heating) is accessible.
3. 1.3  Release electric plug connection for rear air-conditioning control (seat heating) and detach.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

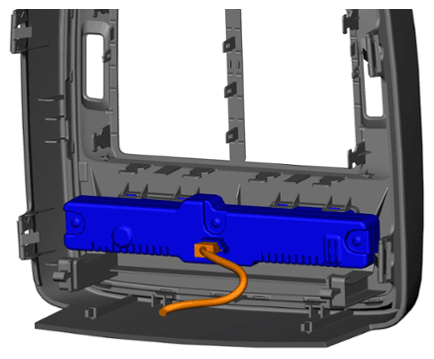

Electric plug connection for rear air-conditioning control (seat heating).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

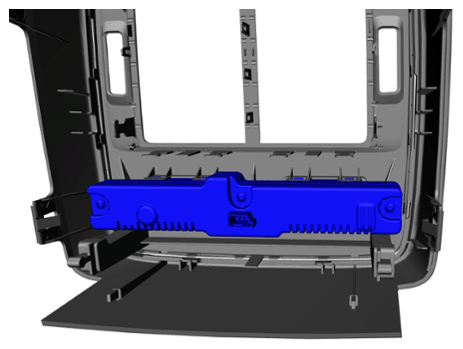

Rear air-conditioning control (seat heating)

1. 2.1  Unclip rear air-conditioning control (seat heating) from rear centre console trim.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

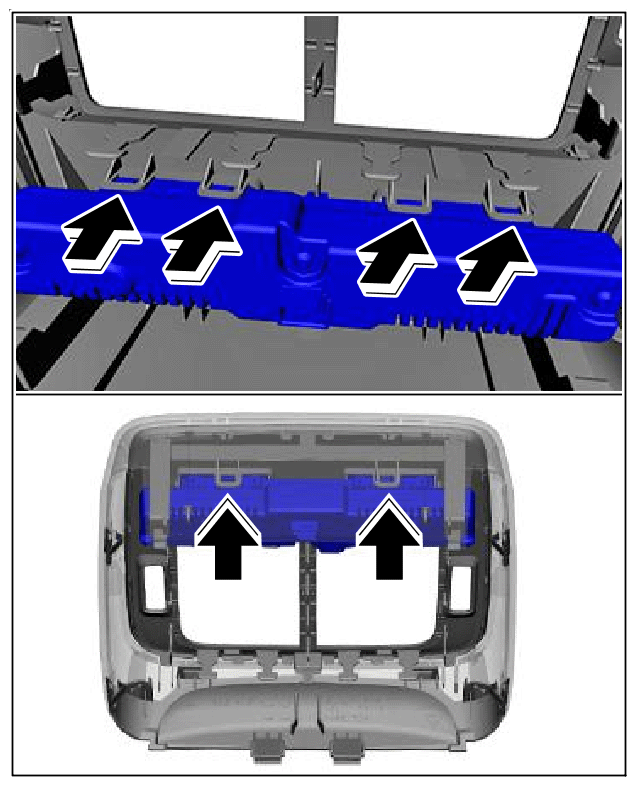

   Rear air-conditioning control mounting (seat heating)
