Installing Rear Air-Conditioning System Regulator

  1. Install rear air-conditioning system regulator -1-  .
    1. 1.1  Position rear air-conditioning system regulator -1-  .
    2. 1.2  Connect and lock electric plug connections -3-  .
    3. 1.3  Push rear air-conditioning system regulator -1-  into clips -2-  until it engages securely.

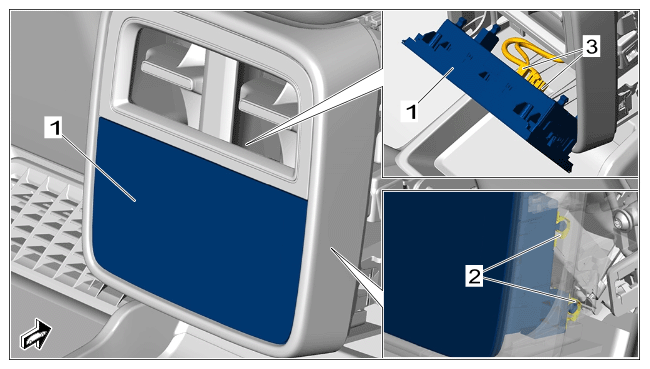

    G15565963Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear air conditioning control

  2. Move front teats back to their original position.
