Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

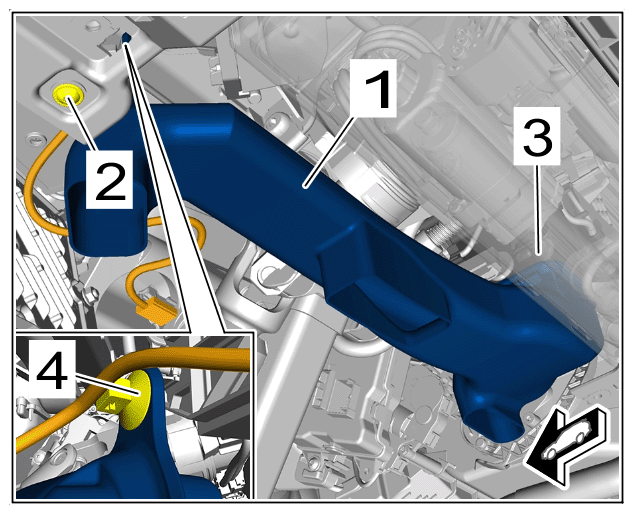

Trim panel Trim panel to footwell outlet vent (on driver's side) Tightening torque 1.5 Nm (1 ftlb.)
G15565242Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front footwell outlet vent (on driver's side)

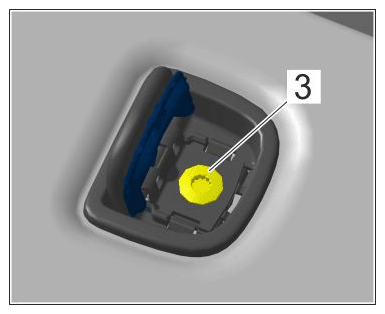

Anchoring system eyelet to bodyshell   Tightening torque 20 Nm (15 ftlb.)
G15565243Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

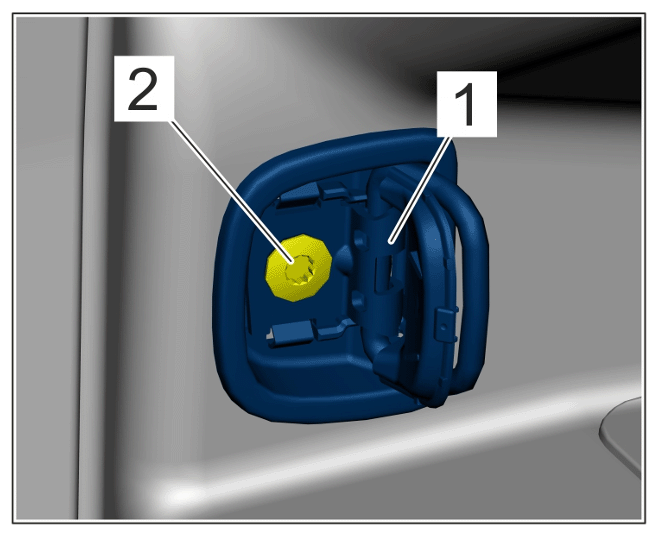

Anchoring system eyelet in luggage compartment Item 2 Tightening torque 20 Nm (15 ftlb.)
G15565244Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for anchoring system eyelet

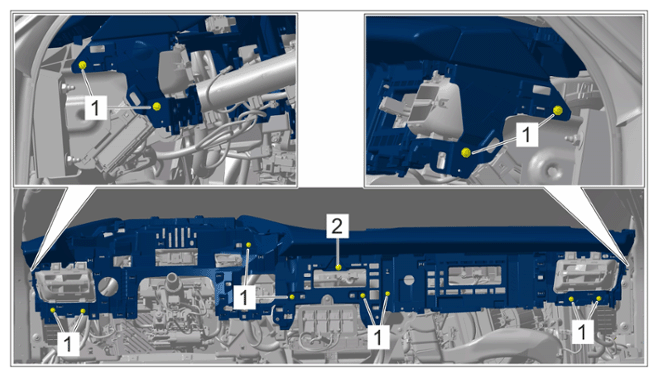

Screws securing dashboard to mounting bracket, centre console holder and air vent Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15565245Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing dashboard to mounting bracket Item 2 Tightening torque 4 Nm (3 ftlb.)
G15565246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

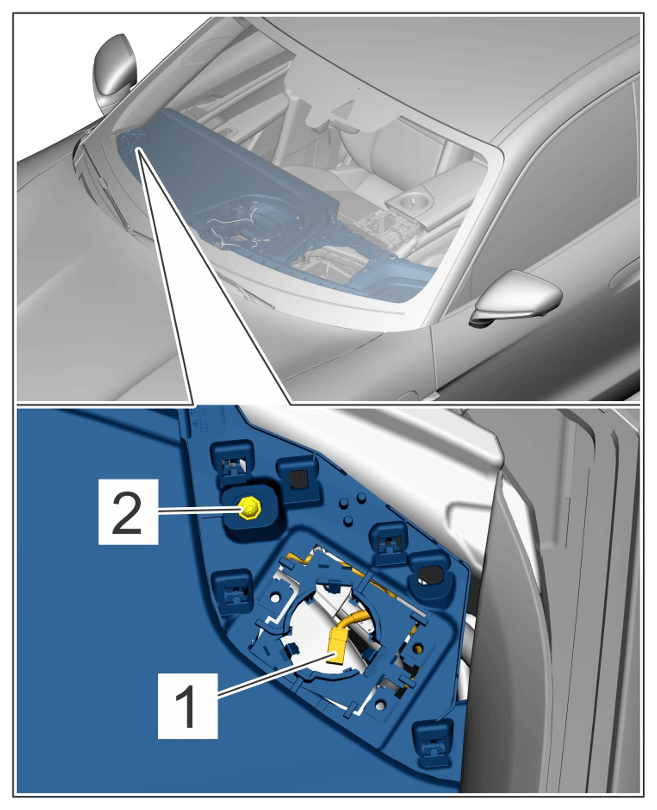

Screw securing dashboard to mounting bracket Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15565247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

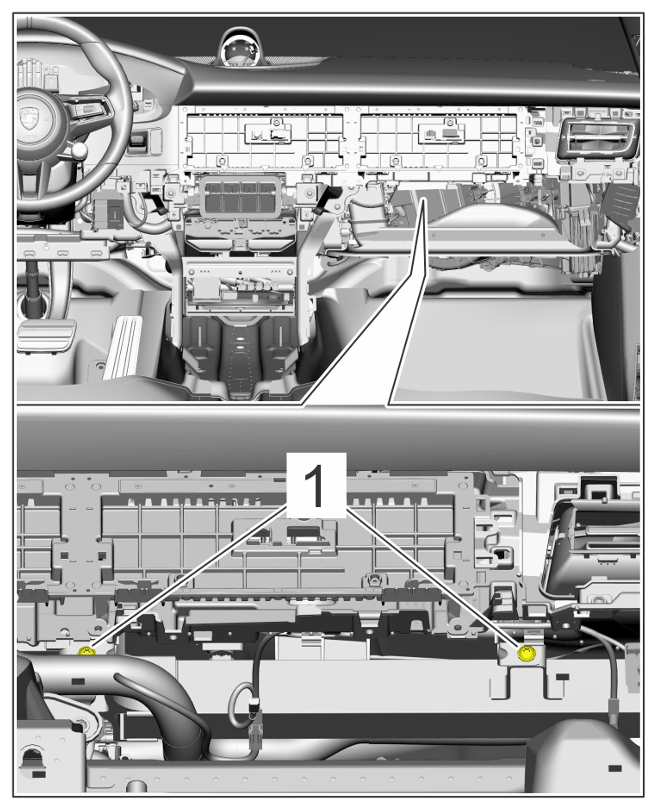

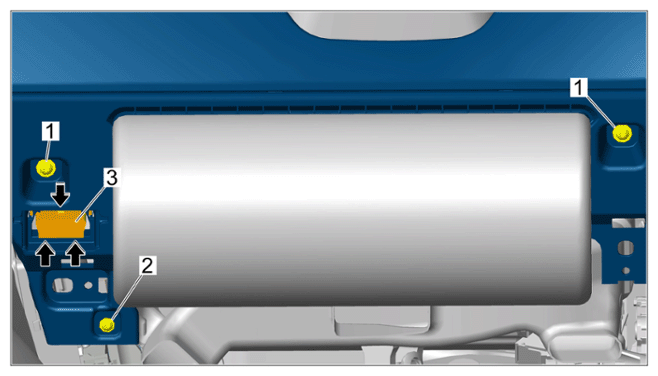

Screws securing dashboard airbag holder Item 1 Safety-relevant screws must always be replaced Tightening torque 9.7 Nm (7 ftlb.)
G15565248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

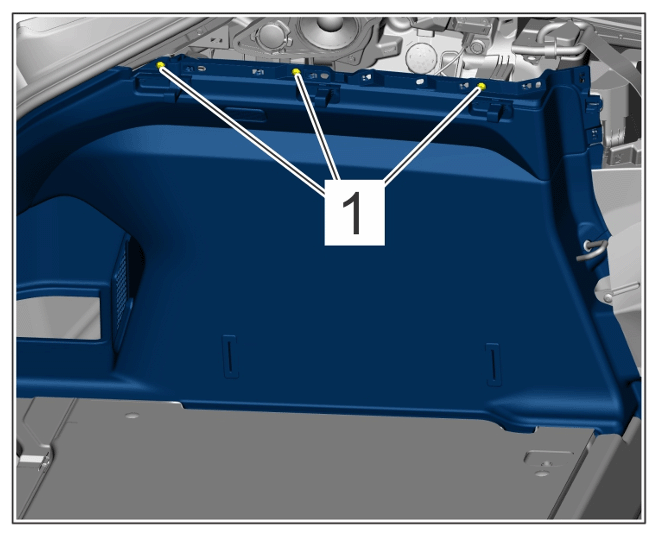

Screws for luggage compartment trim panel (luggage compartment cover) to bracket Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15565249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

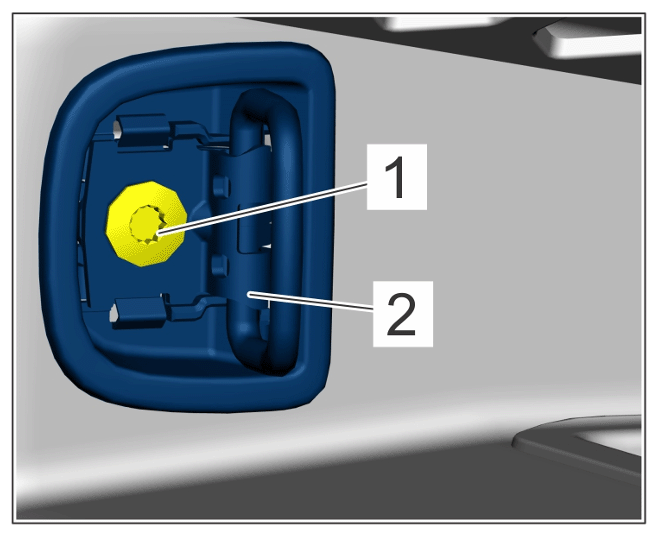

Screw for anchoring system eyelet Item 1 Tightening torque 20 Nm (15 ftlb.)
G15565250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for anchoring system eyelet

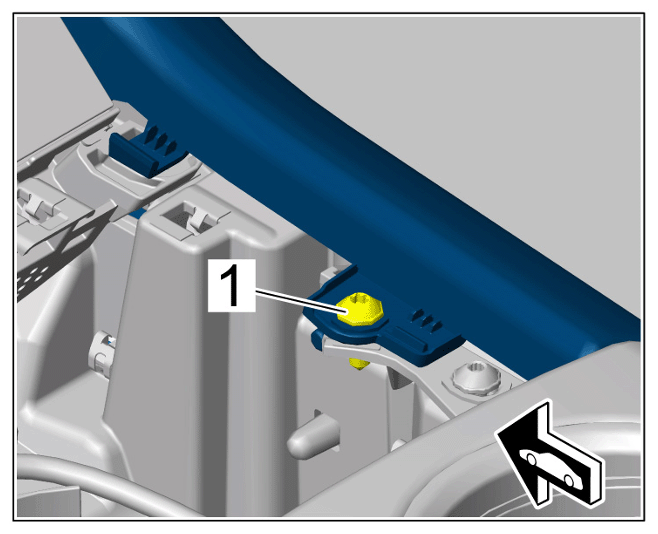

Centre screw securing dashboard trim panel (passenger's side) to centre console Item 1 Tightening torque 3 Nm (2 ftlb.)
G15565251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

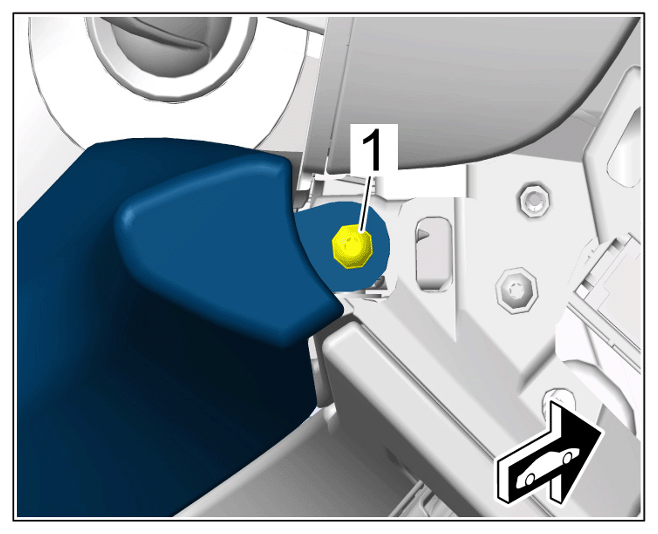

Side screw securing dashboard trim panel (passenger's side) to dashboard Item 1 Tightening torque 3 Nm (2 ftlb.)
G15565252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screw

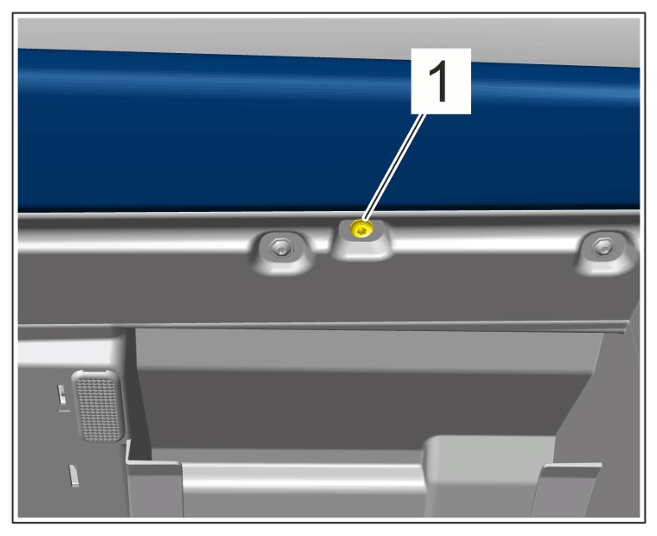

Screw securing dashboard trim panel (passenger's side) to glove box Item 1 Tightening torque 3 Nm (2 ftlb.)
G15565253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for glove box

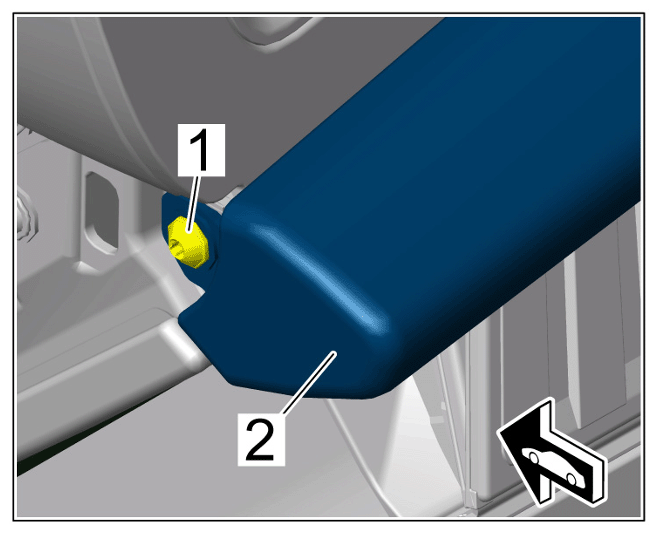

Screw securing outside of dashboard trim panel (driver's side) to dashboard Item 1 Tightening torque 3 Nm (2 ftlb.)
G15565254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

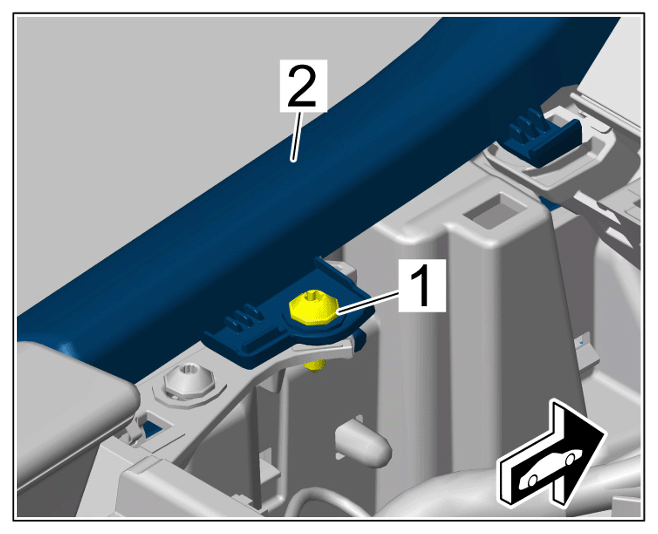

Screw securing centre of dashboard trim panel (driver's side) to dashboard Item 1 Tightening torque 3 Nm (2 ftlb.)
G15565255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

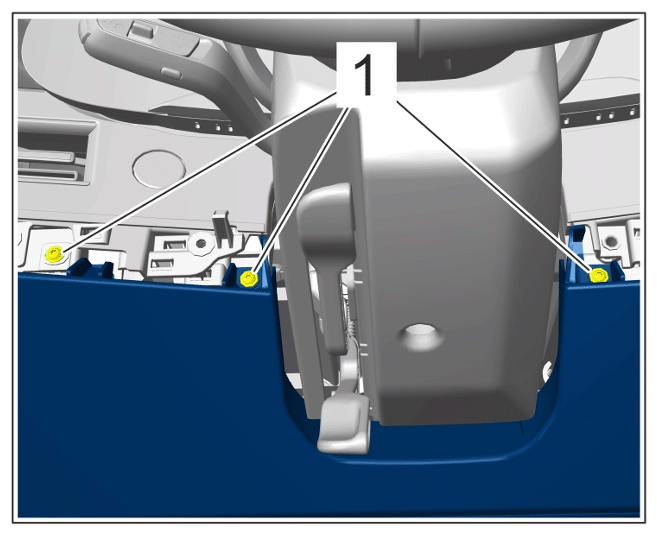

Top screw securing trim panel under dashboard to dashboard Item 1 Tightening torque 1.5 Nm (1.1 ftlb.)
G15565256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Side screw securing trim panel under dashboard to dashboard Item 1 Tightening torque 1.5 Nm (1.1 ftlb.)
G15565257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

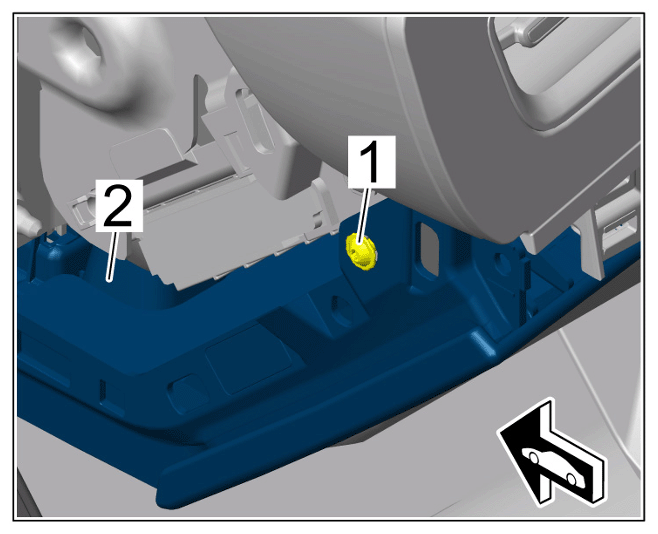

Bottom screw securing trim panel under dashboard to dashboard Item 2 Tightening torque 1.5 Nm (1.1 ftlb.)
G15565258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing trim panel under dashboard to dashboard Item 1 Tightening torque 3 Nm (2.2 ftlb.)
G15565259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

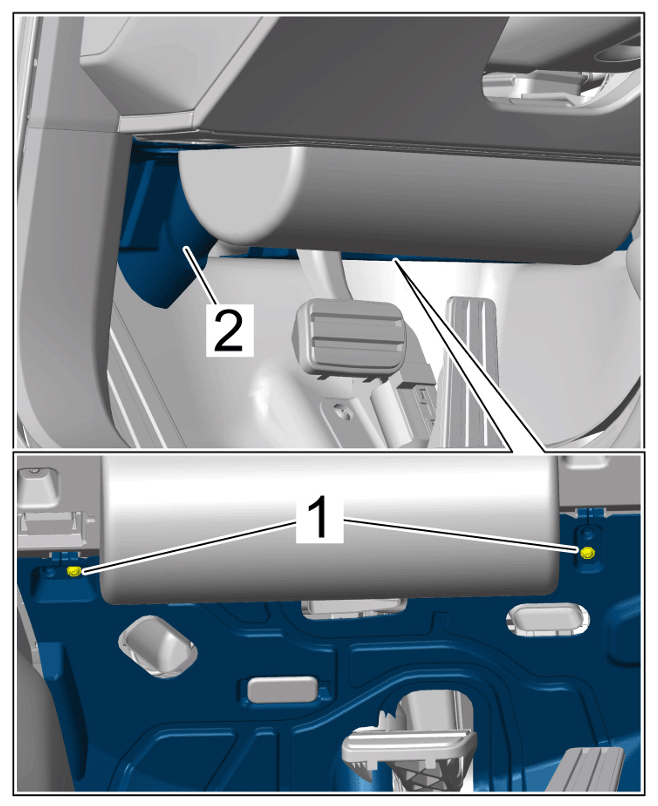

Screws securing cover under dashboard to dashboard Item 1 Tightening torque 1.2 Nm (0.7 ftlb.)
G15565260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

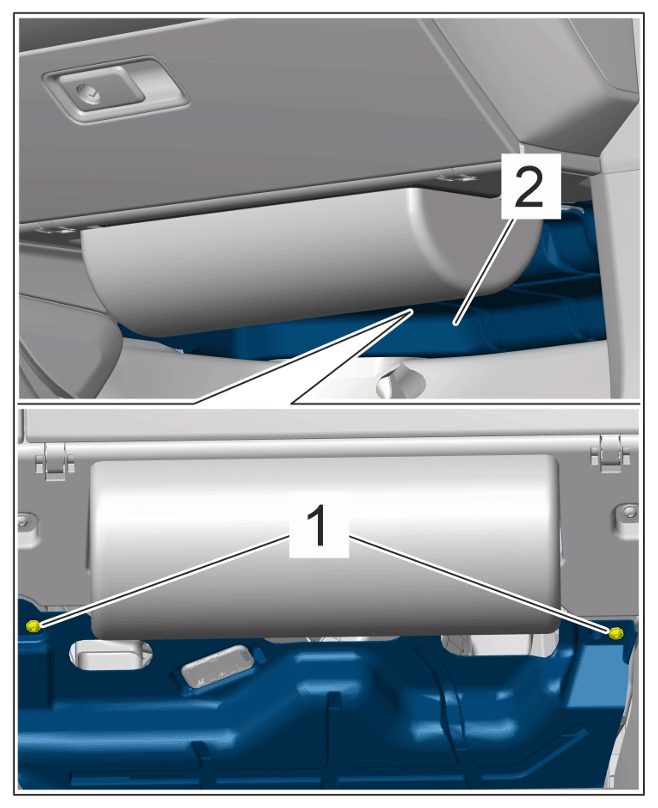

Screws securing cover under dashboard to dashboard Item 1 Tightening torque 1.2 Nm (0.7 ftlb.)
G15565261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

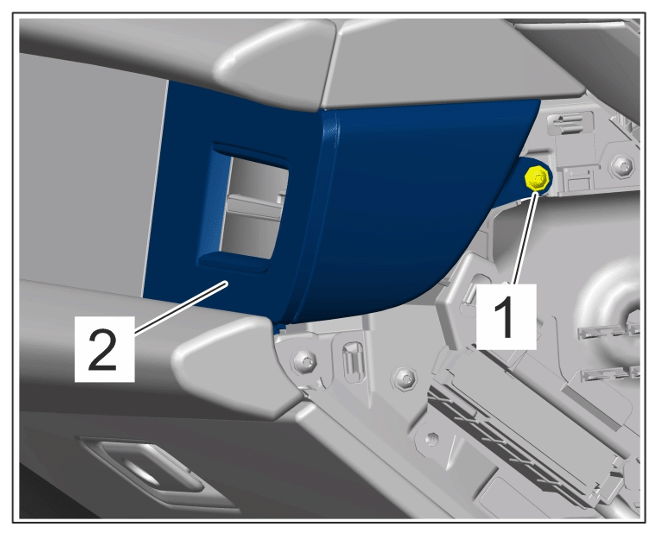

Screw securing dashboard moulding (on passenger's side) to dashboard Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15565262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

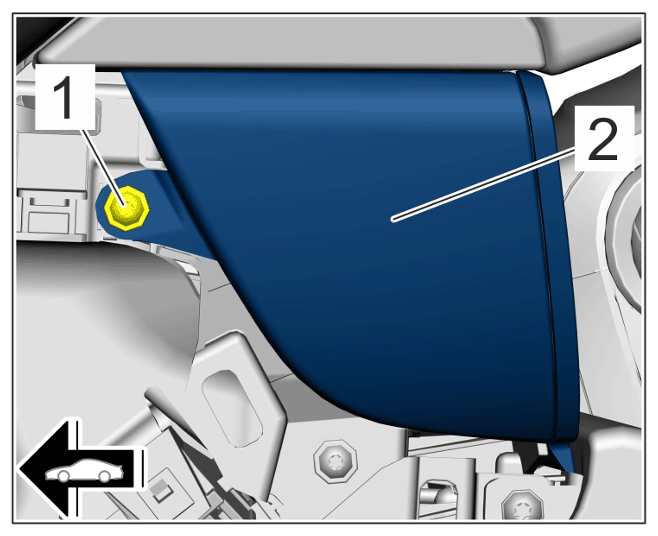

Screw securing dashboard moulding (driver's side) to dashboard Item 1 Tightening torque 1.5 Nm (1.1 ftlb.)
G15565263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

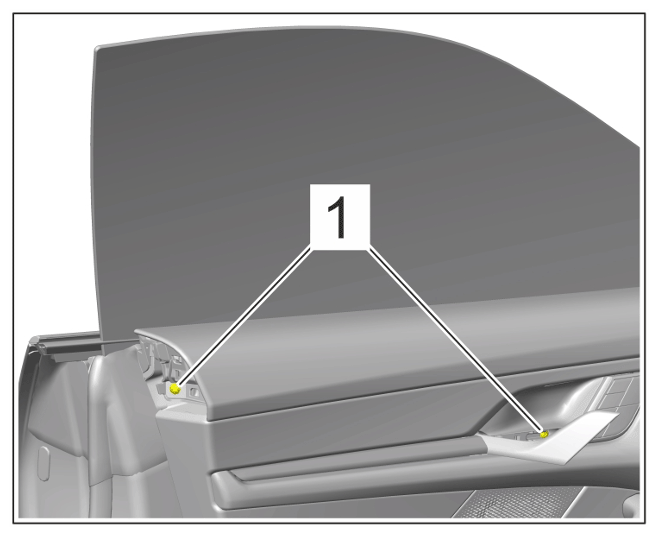

Screws securing door panel to door bodyshell Item 1 Tightening torque 4 Nm (3 ftlb.)
G15565264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

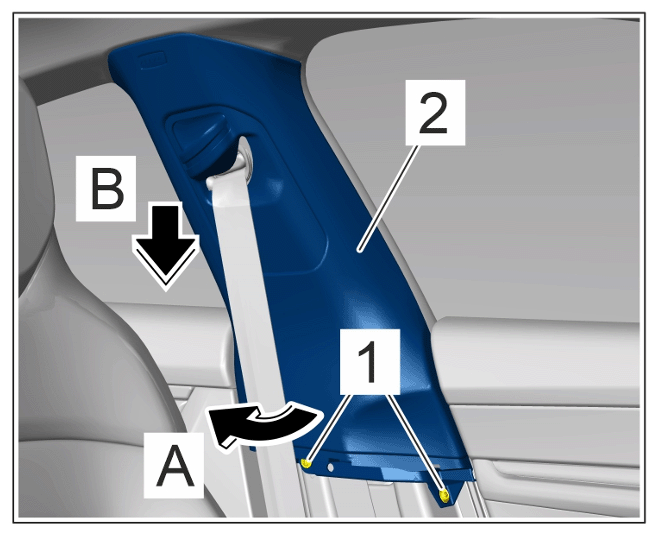

B-pillar trim panel (upper part) on B-pillar Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15565265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

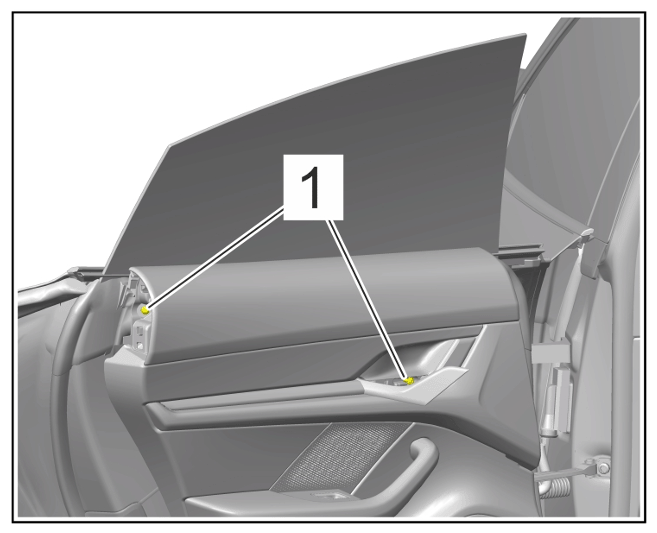

Screws securing door panel to door bodyshell Item 1 Tightening torque 4 Nm (3 ftlb.)
G15565266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

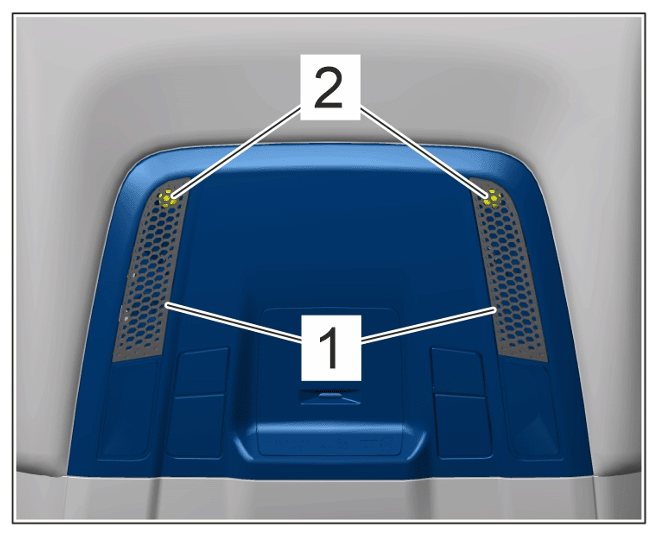

Screws securing front roof console to headliner Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15565267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

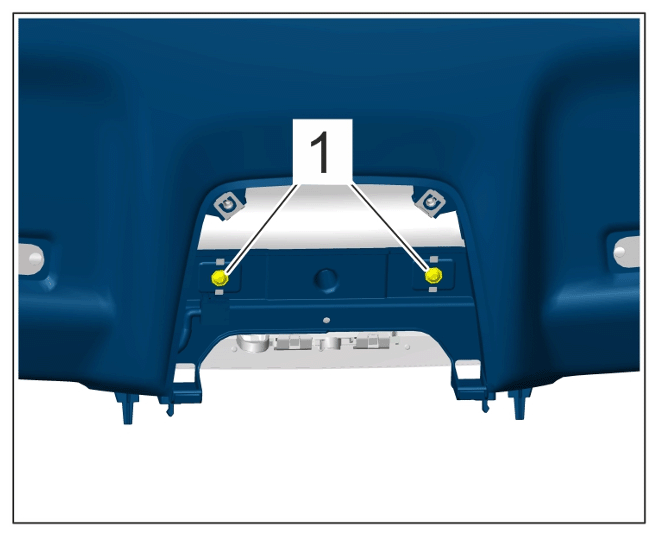

Screw securing headliner to roof bodyshell Item 1 Tightening torque 5.6 Nm (4 ftlb.)
G15565268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

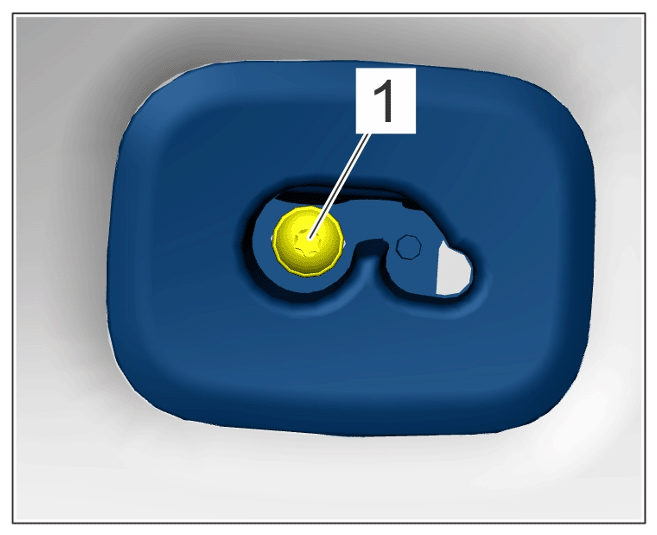

Luggage net mounting screw Item 1 Tightening torque 9 Nm (6.5 ftlb.)
G15565269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Luggage net mounting screw

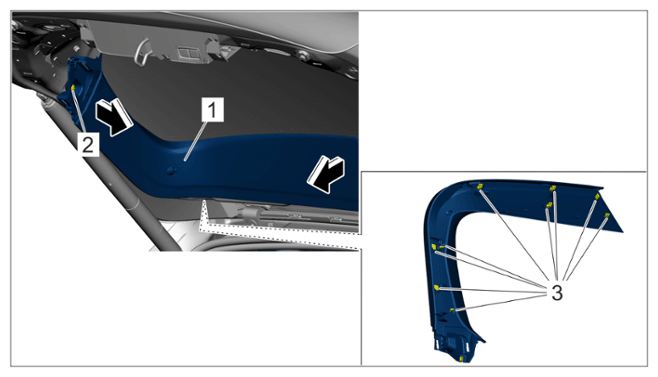

Screw for tailgate trim panel Item 2 Tightening torque 8 Nm (6 ftlb.)
G15565270Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailgate trim panel

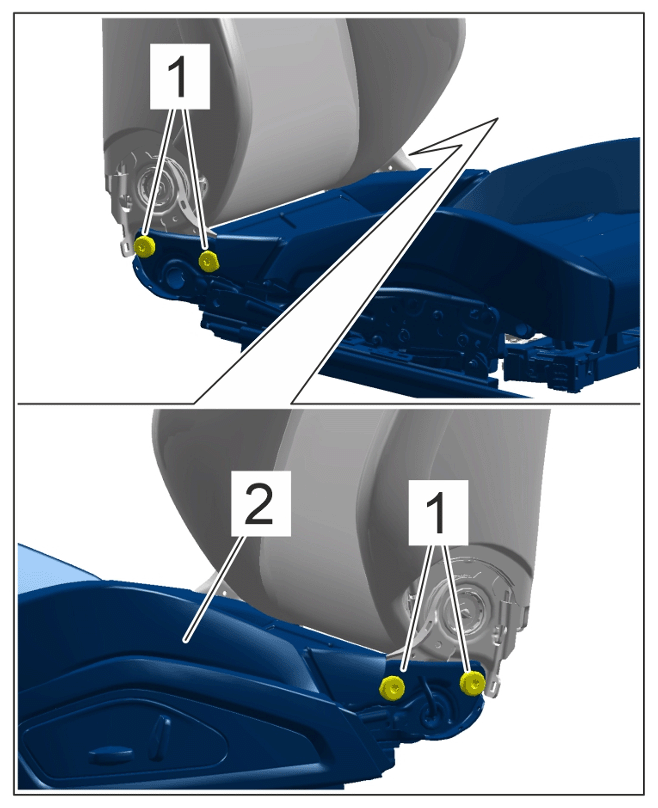

Screws securing seat frame Replace Item 1 self-locking screws! Tightening torque 44 Nm (33 ftlb.)
G15565271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws securing air cushion for seat to seat backrest Item 1 Tightening torque 3 Nm (2 ftlb.)
G15565272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for seat

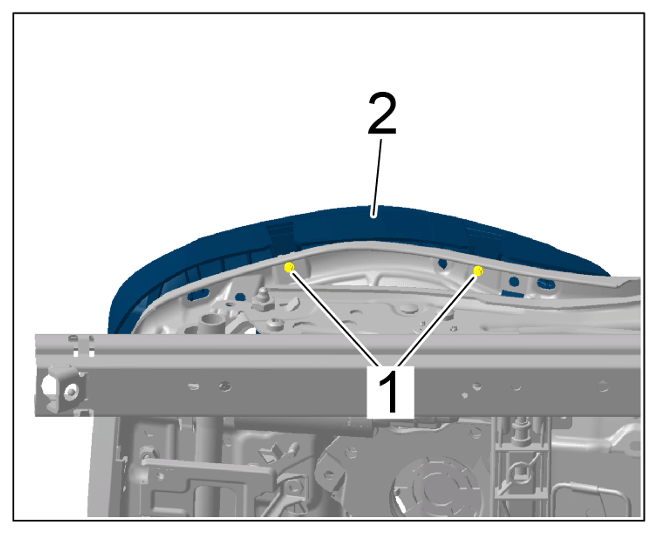

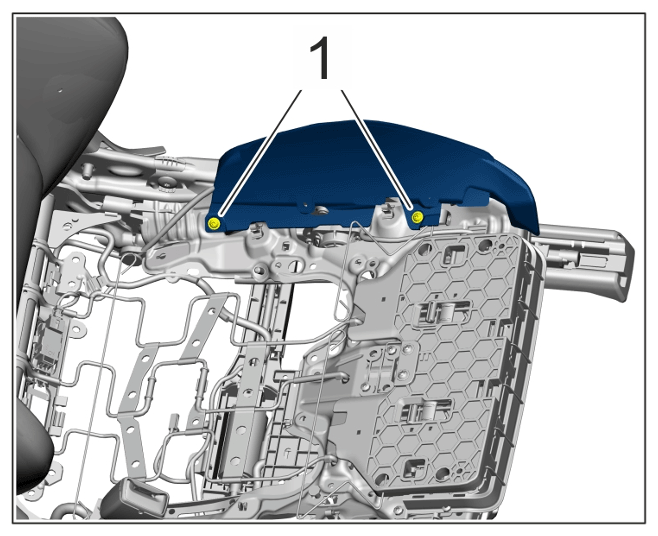

Screws securing air cushion supporting seat to seat frame Item 1 Tightening torque 3 Nm (2 ftlb.)
G15565273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for seat, top side

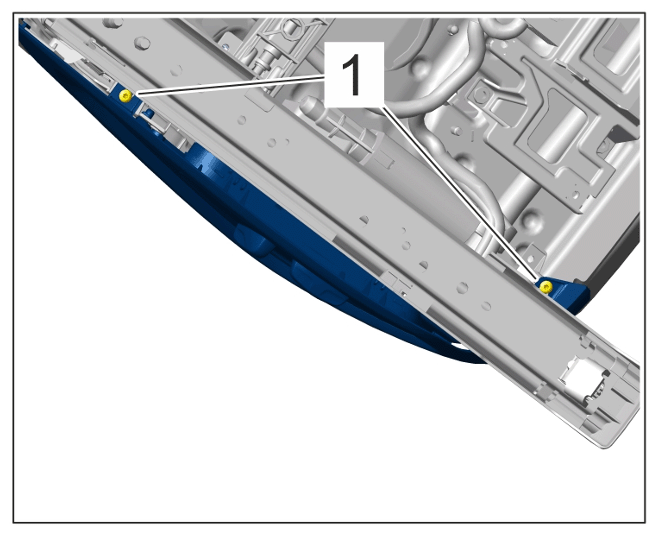

Screws securing trim panel for control panel to seat frame Item 1 Tightening torque 3.5 Nm (2.5 ftlb.)
G15565274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

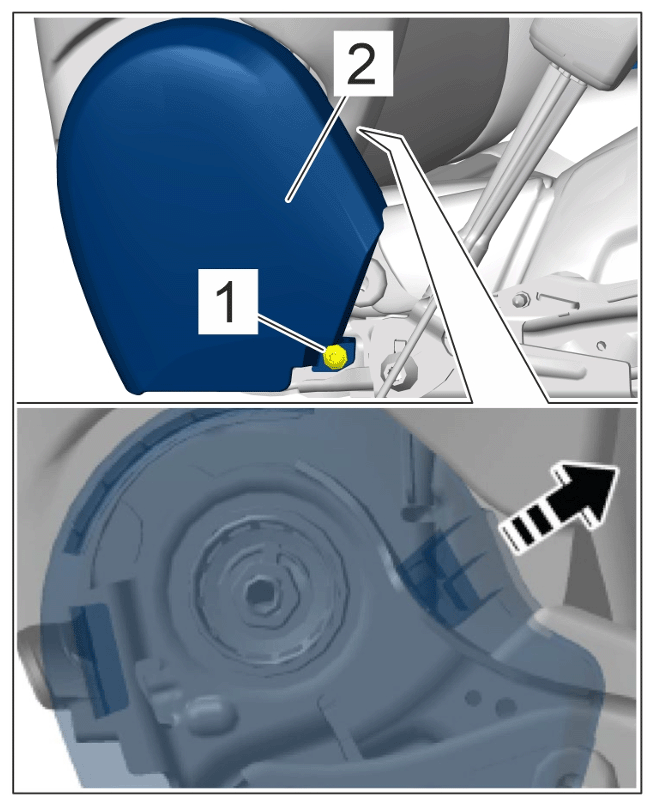

Screw securing inner front seat trim panel to seat Item 1 Tightening torque 2.2 Nm (1.6 ftlb.)
G15565275Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

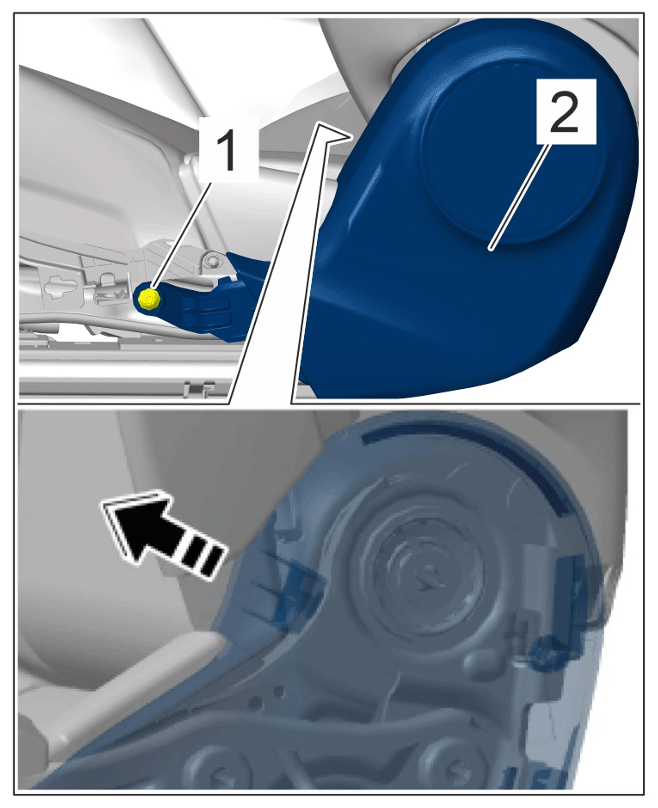

Screw securing outer front seat trim panel to seat Item 1 Tightening torque 2.2 Nm (1.6 ftlb.)
G15565276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

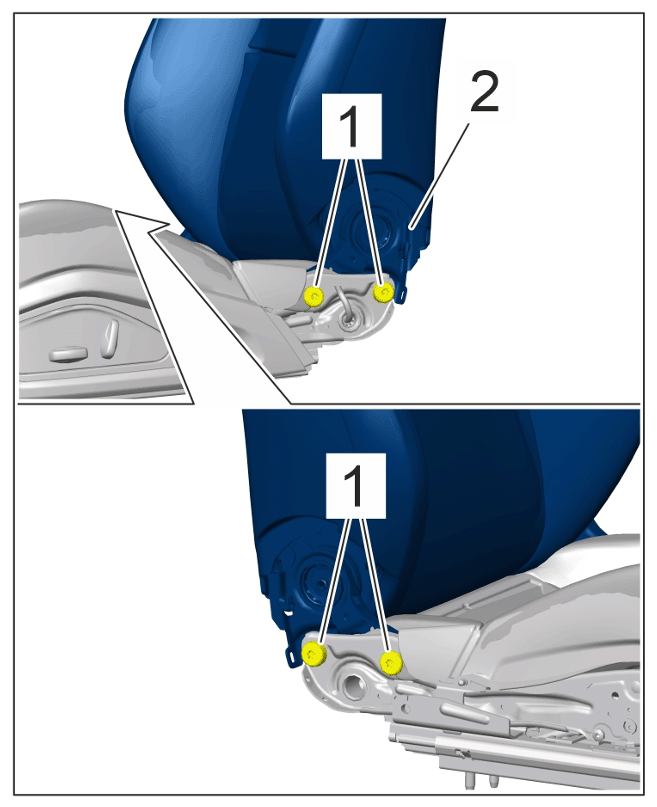

Screws securing backrest frame to seat frame Item 1 Tightening torque 70 Nm (51.6 ftlb.)
G15565277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

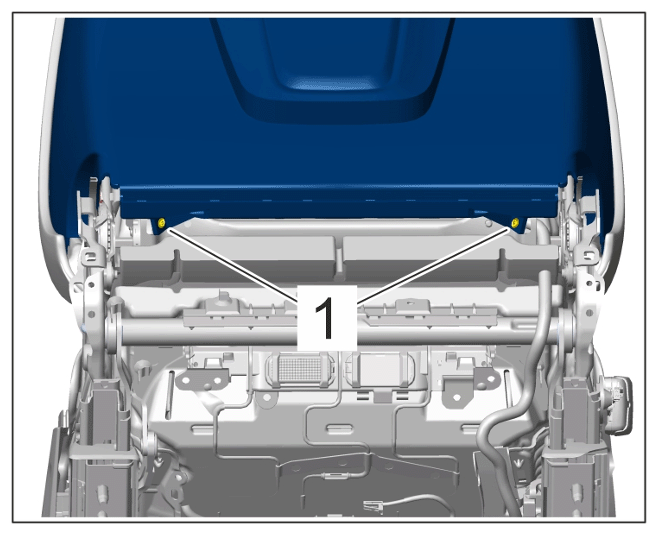

Screw securing backrest cover to seat Item 1 Tightening torque 5 Nm (3.5 ftlb.)
G15565278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

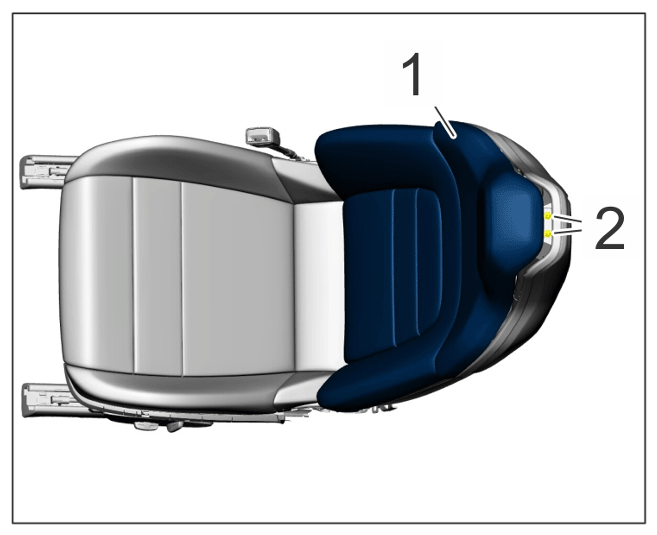

Screws for backrest cover Item 2 Tightening torque 4 Nm (3 ftlb.)
G15565279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for backrest cover

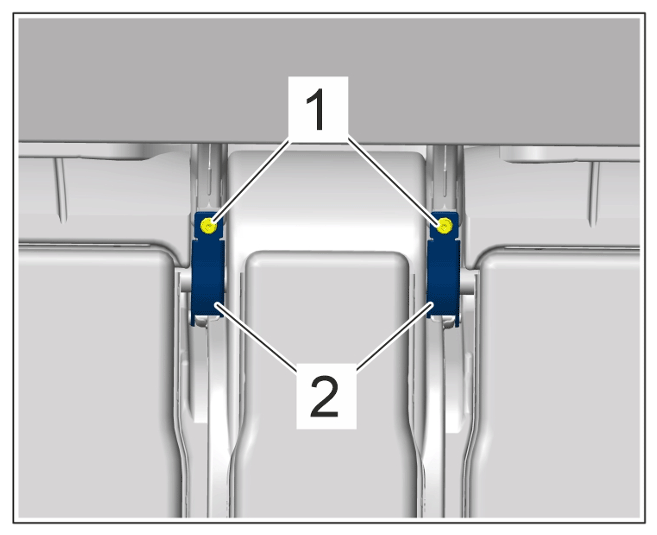

Screws securing centre bearing lock bar to rear backrest Item 1 Tightening torque 10 Nm (7.5 ftlb.)
G15565280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

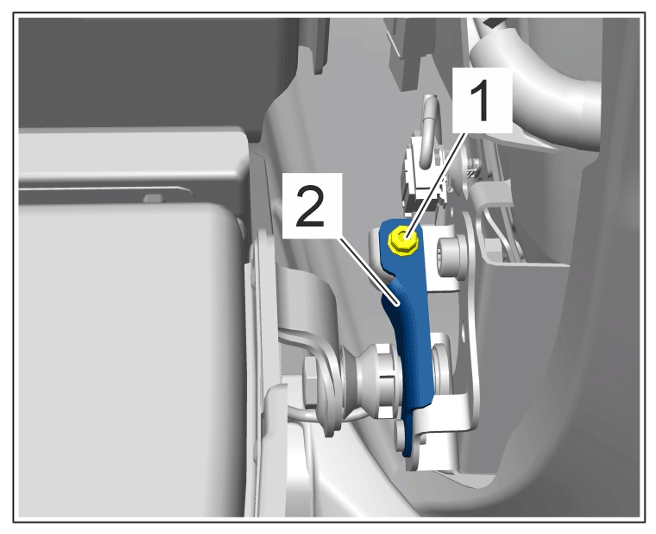

Screw securing side bearing catch bar to rear backrest Item 1 Tightening torque 10 Nm (7.5 ftlb.)
G15565281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on side bearing catch bar

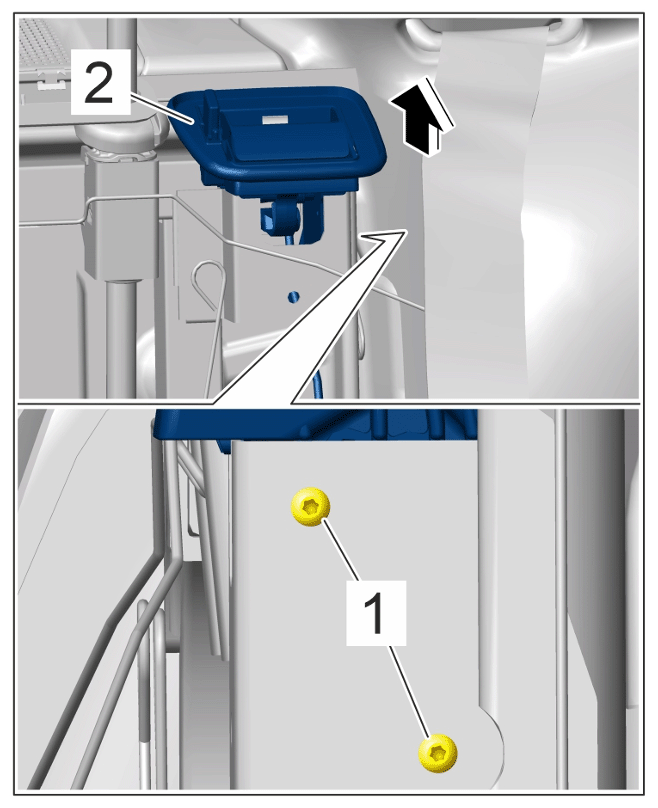

Screw securing locking mechanism for rear backrest to holder Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)
G15565282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism for rear backrest

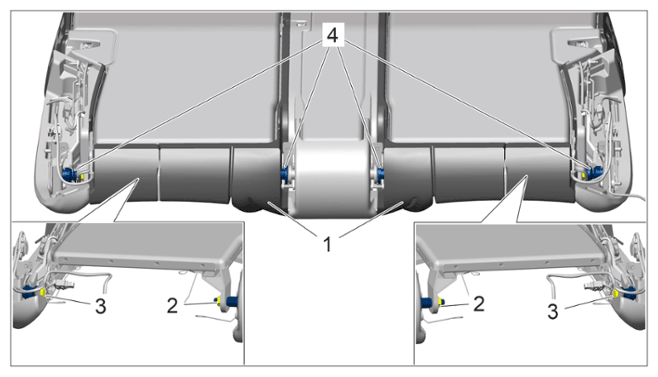

Nuts securing rear backrest mount to seat Item 2 Tightening torque 50 Nm (37 ftlb.)
G15565283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear backrest mount
Screws securing rear backrest mount to seat Item 3 Tightening torque 50 Nm (37 ftlb.)
G15565284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear backrest mount

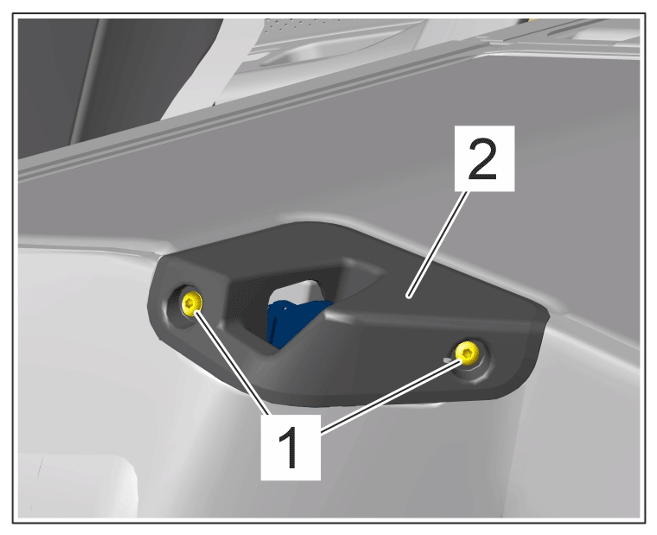

Screws securing cover to rear-seat backrest Item 1 Tightening torque 2.6 Nm (1.8 ftlb.)
G15565285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

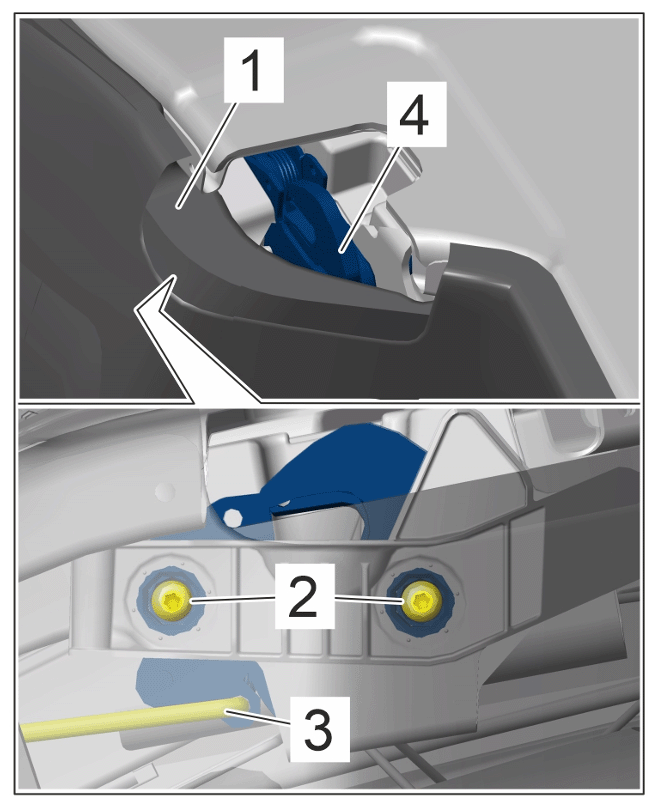

Screws securing rear-seat backrest lock to rear-seat backrest Item 2 Tightening torque 24 Nm (18 ftlb.)
G15565286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

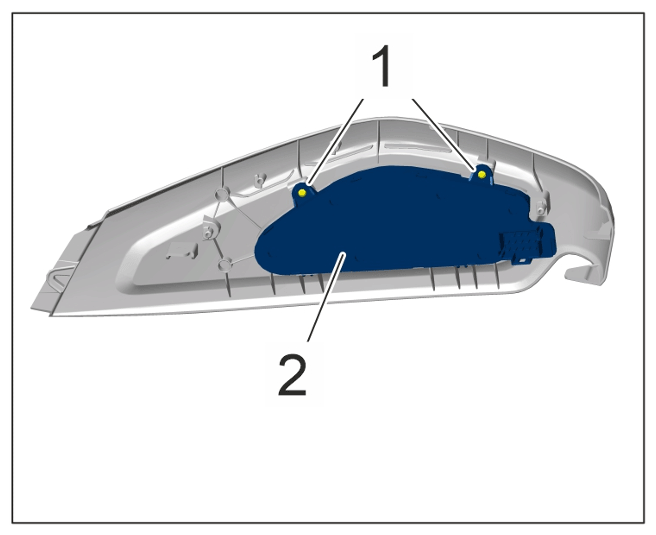

Screws securing front seat adjustment switch to control panel trim Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15565287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

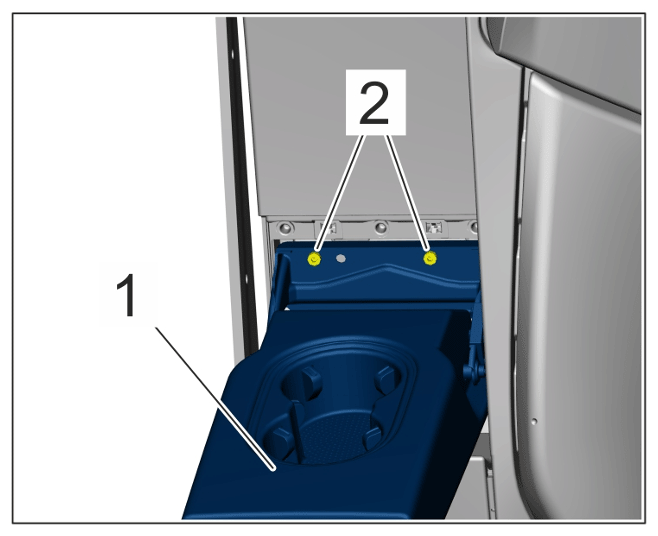

Armrest holder to backrest Item 2 Tightening torque 9 Nm (6.5 ftlb.)
G15565288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest holder

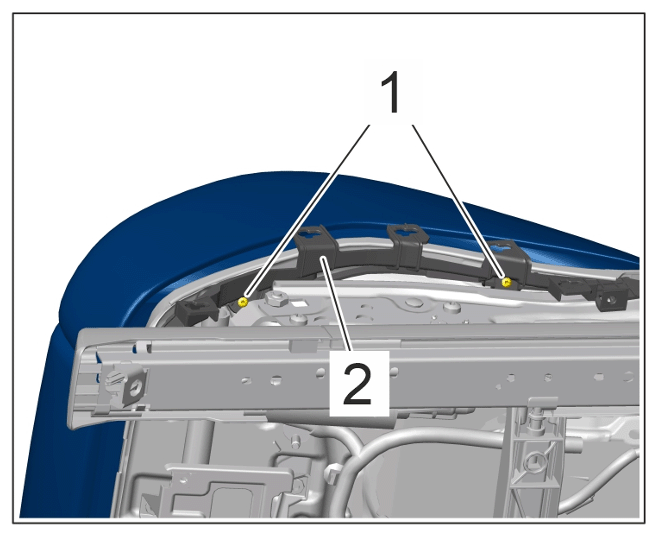

Screws securing trim panel holder to seat frame Item 1 Tightening torque 3 Nm (2 ftlb.)
G15565289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

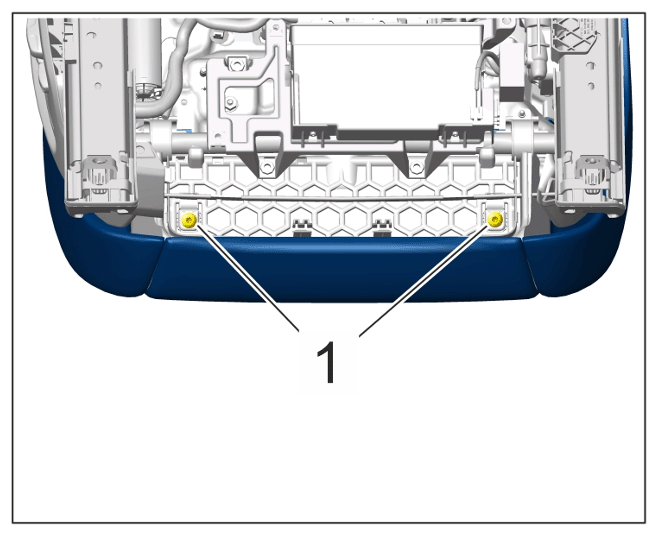

Screw securing padding for seat-surface extension to seat-surface extension Item 1 Tightening torque 1.8 Nm (1.25 ftlb.)
G15565290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
