Seat-Surface Extension, Front

Location Description Type Basic value Tolerance
Screw securing padding for seat-surface extension to seat-surface extension Item 1 Tightening torque 1.8 Nm (1.25 ftlb.)

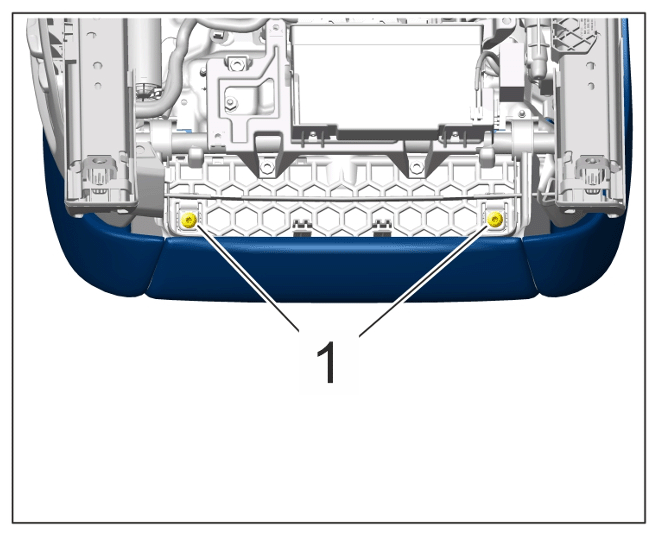

G15565336Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
