7X Body-Equipment Inside General -- Y1A - TAYCAN (Y1A)
>>
WM, 7X00IN Technical Values
>>
74 - Seat Cushions, Covers
>>
Front Seat
Front Seat
Location
Description
Type
Basic value
Tolerance

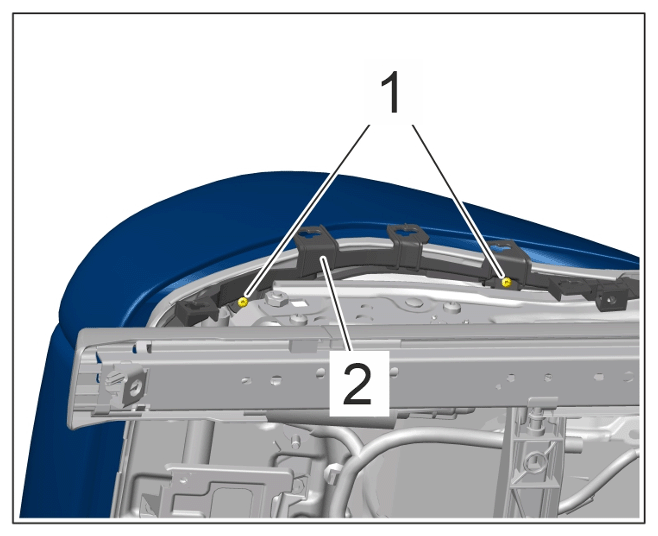

Screws securing trim panel holder to seat frame
Item 1
Tightening torque
3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
