7X Body-Equipment Inside General -- Y1A - TAYCAN (Y1A)
>>
WM, 7X00IN Technical Values
>>
74 - Seat Cushions, Covers
>>
Armrest With Cover
Armrest With Cover
Location
Description
Type
Basic value
Tolerance
Armrest holder to backrest
Item 2
Tightening torque
9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

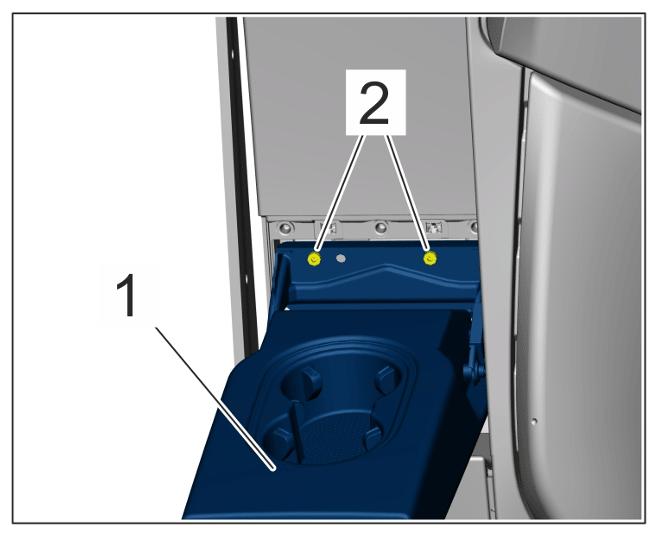

Screws for armrest holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
