Technical Values - Front Seat

Location	Description	Type	Basic value	Tolerance

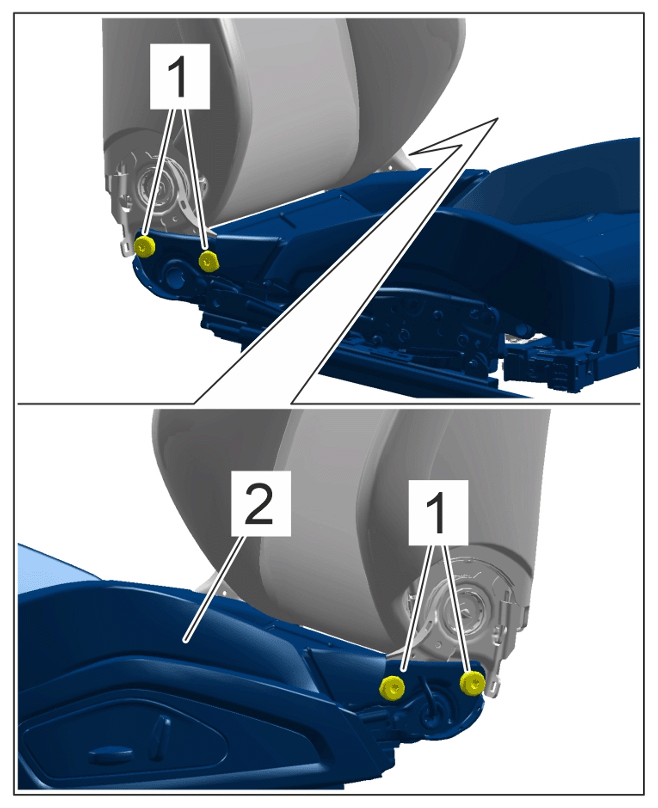

Screws securing seat frame	Replace Item 1 self-locking screws!	Torque	44 Nm (33 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

Location	Description	Type	Basic value

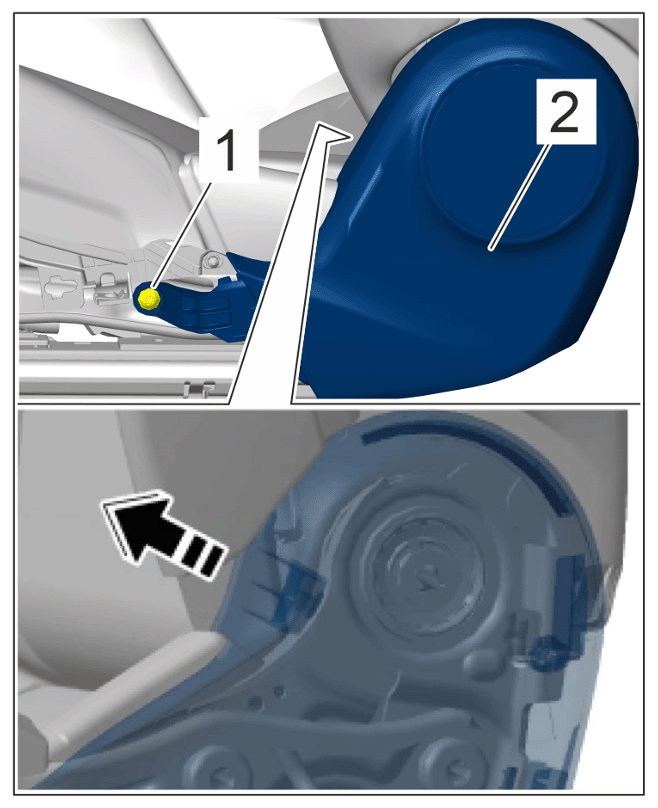

Screw securing inner front seat trim panel to seat	Item 1	Tightening torque	2.2 Nm (1.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

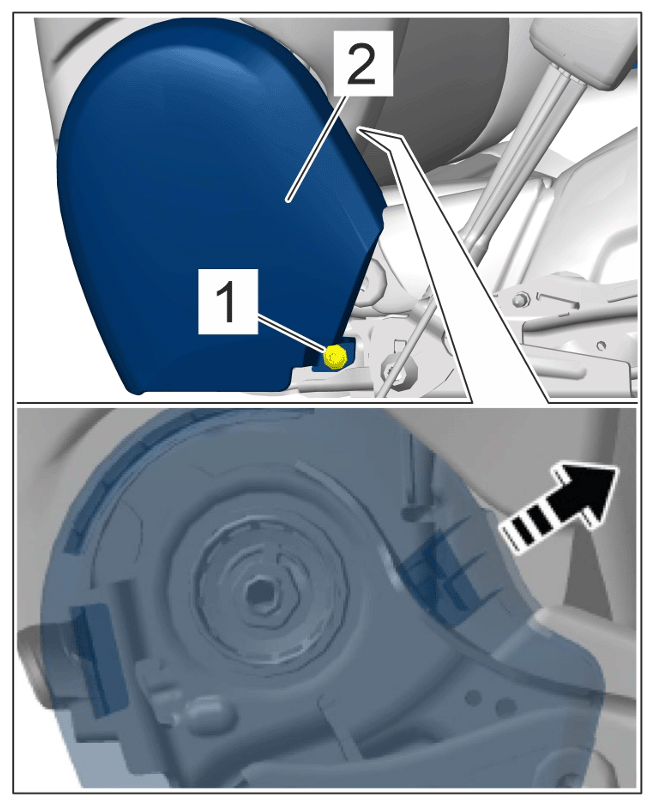

Screw securing outer front seat trim panel to seat	Item 1	Tightening torque	2.2 Nm (1.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

Location	Description	Type	Basic value	Tolerance

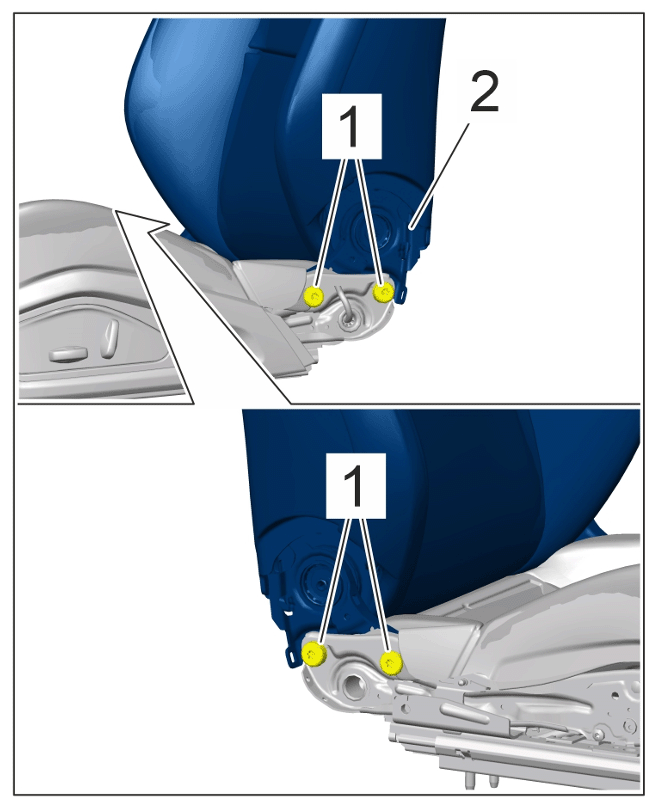

Screws securing backrest frame to seat frame	Item 1	Tightening torque	70 Nm (51.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
