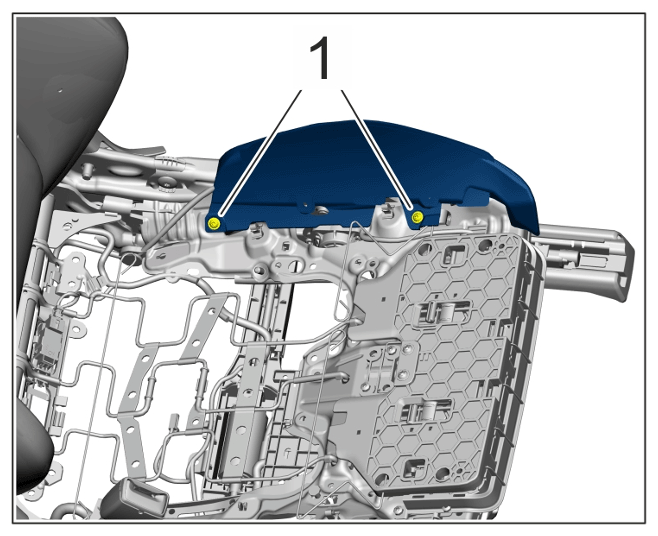

| Screws securing air cushion for seat to seat backrest |
Item 1 |
Tightening torque |
3 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Air cushion for seat |

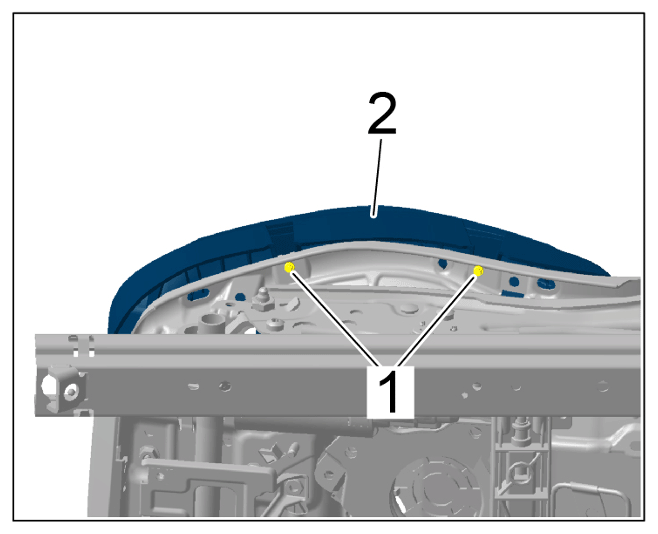

| Screws securing air cushion supporting seat to seat frame |
Item 1 |
Tightening |
Torque 3 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Air cushion for seat, top side |
