Trim Panel For Dashboard (Passenger'S Side)

Location	Description	Type	Basic value	Tolerance

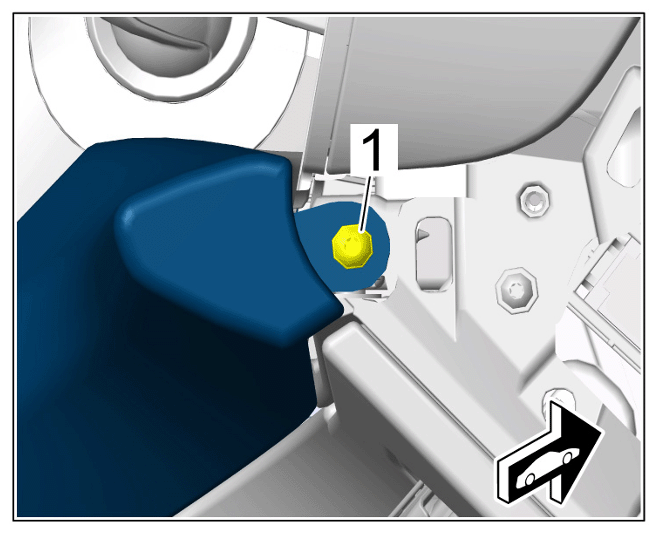

Centre screw securing dashboard trim panel (passenger's side) to centre console	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

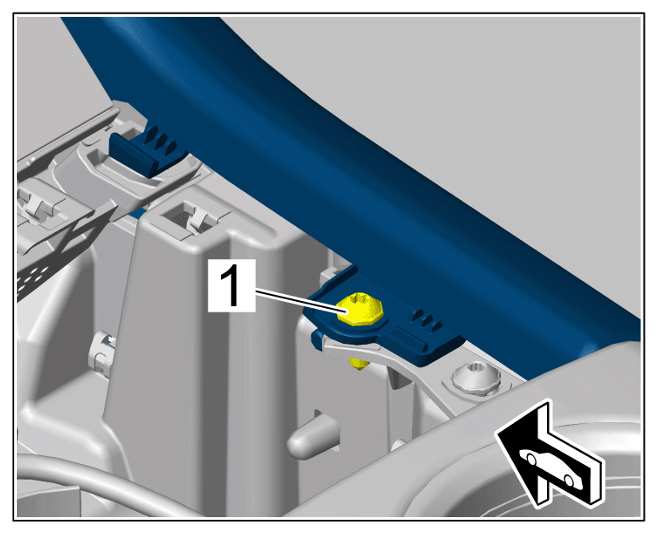

Side screw securing dashboard trim panel (passenger's side) to dashboard	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side screw

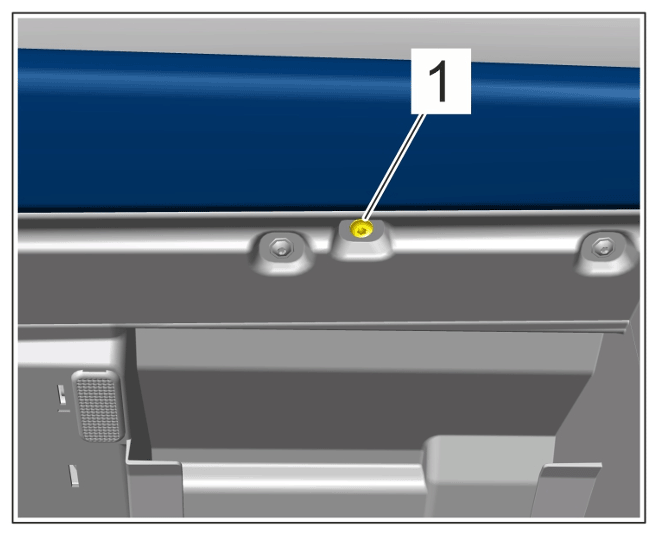

Screw securing dashboard trim panel (passenger's side) to glove box	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for glove box
