Technical Values: Roof

Location	Description	Type	Basic value	Tolerance
Roof to A-pillar	Dimension B	Offset	- 2.5 mm	+/- 0.8 mm

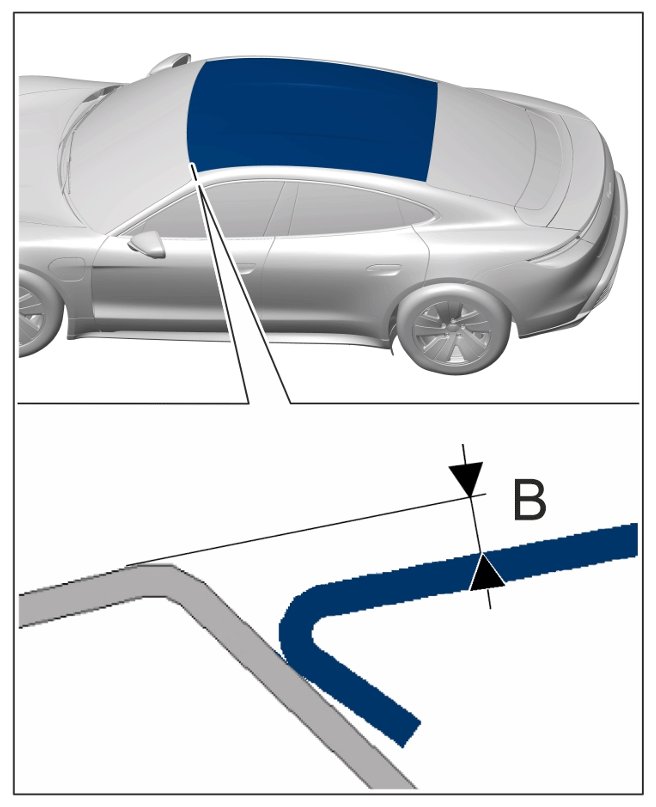

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof to A-pillar
Roof to rear side panel	Dimension B	Offset	- 2.5 mm	+/- 0.8 mm

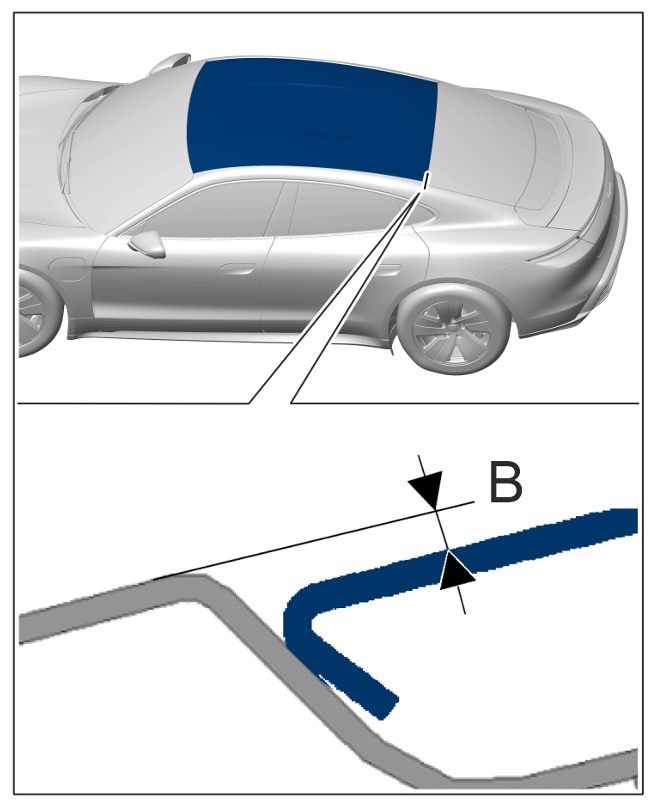

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof to rear side panel
Roof to windscreen	Dimension A	Gap dimension	2.5 mm	- 0.5 mm + 0.9 mm

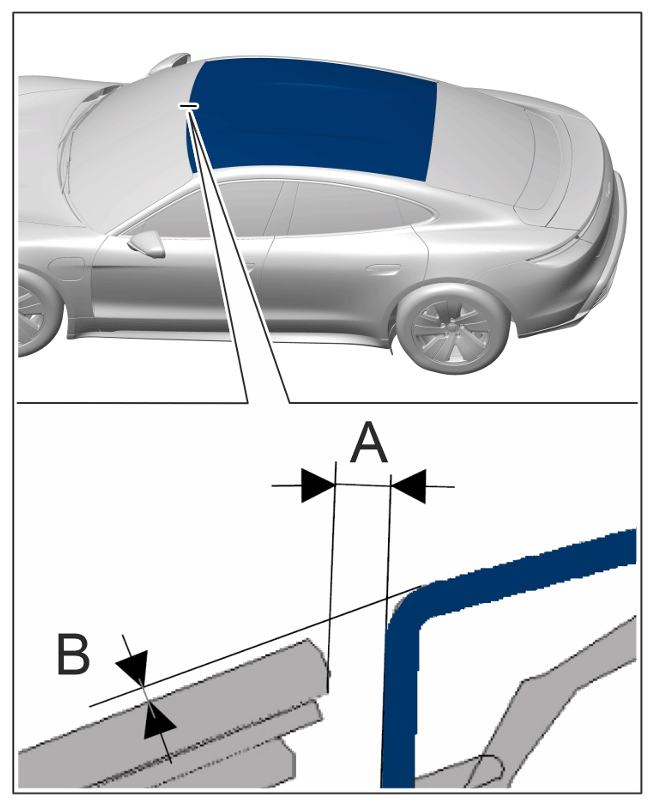

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof to windscreen
Roof to windscreen	Dimension B	Offset	0.5 mm	- 1.0 mm + 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof to windscreen
Roof to rear window	Dimension A	Gap dimension	2.5 mm	+/- 0.8 mm

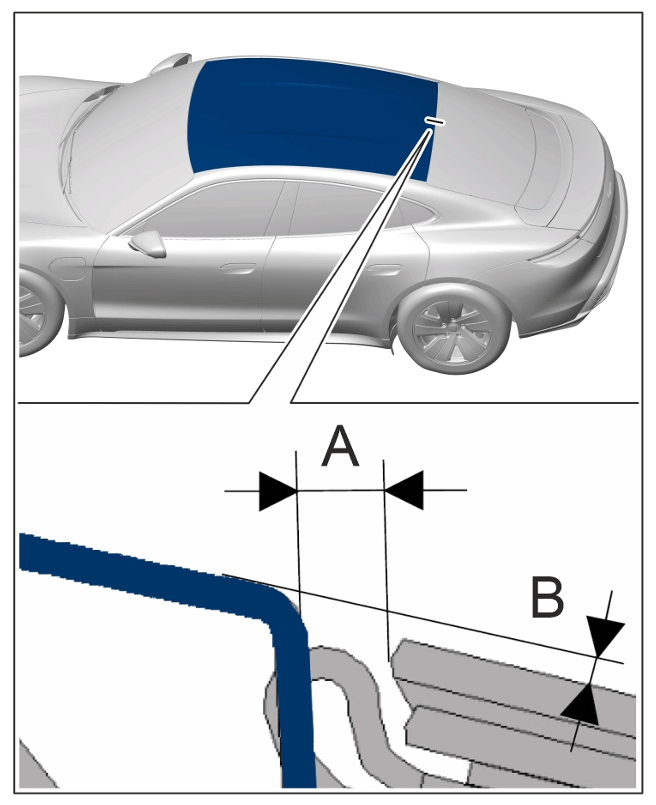

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof to rear window
Roof to rear window	Dimension B	Offset (single-pane safety glass)	1.0 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof to rear window
Roof to rear window	Dimension B	Offset (laminated safety glass)	0.6 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof to rear window
