Technical Values

Location	Description	Type	Basic value
Lower trailing arm on wheel bearing housing	Initial tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm

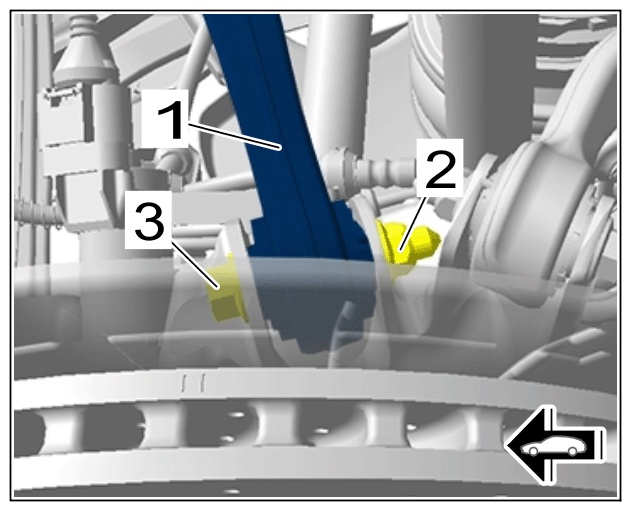

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower trailing arm on wheel bearing housing
Lower trailing arm on wheel bearing housing	Final tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower trailing arm on wheel bearing housing
Tie rod to rear wheel bearing housing	Initial tightening/Screw/Item 3/Always replace screw following removal.	Tightening torque	70 Nm (52 ftlb.)

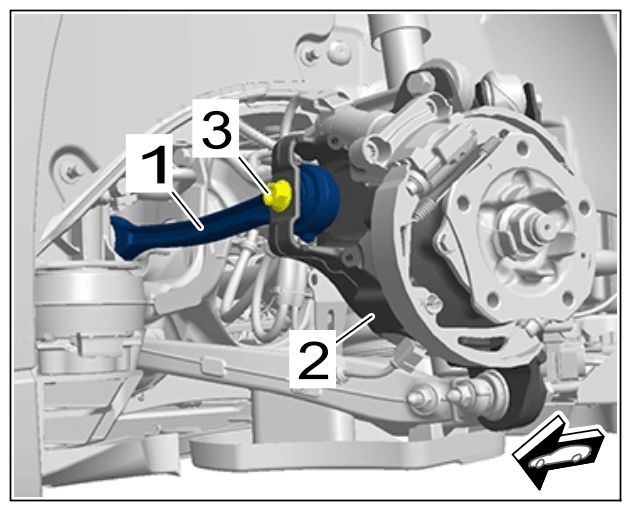

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod
Tie rod to rear wheel bearing housing	Final tightening/Screw/Item 3/Always replace screw following removal.	Torque angle
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod
Upper control arm, front to wheel bearing housing	Initial tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm (52 ftlb.)

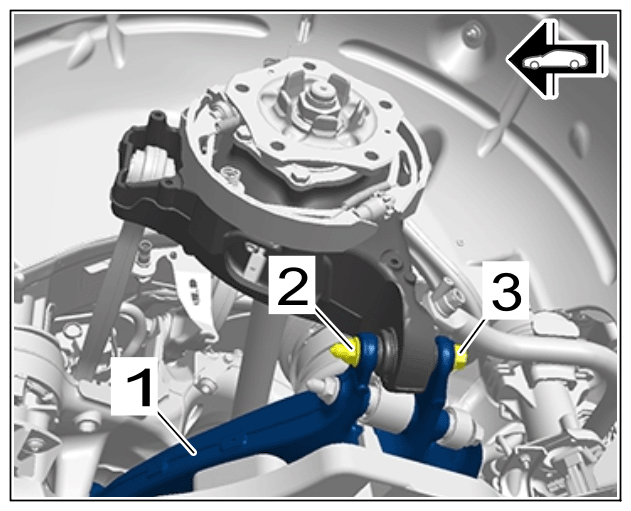

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Upper control arm, front to wheel bearing housing	Final tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Torque angle
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Rear upper control arm to wheel bearing housing	Initial tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm (52 ftlb.)

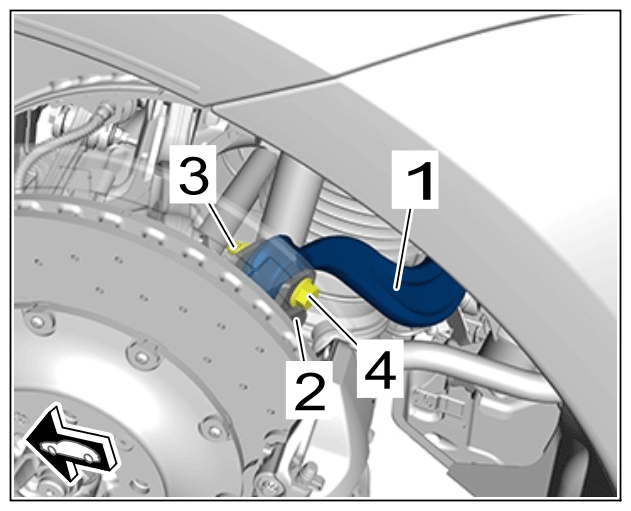

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear upper control arm on wheel bearing housing
Rear upper control arm to wheel bearing housing	Final tightening/Nut/Screw/Items 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear upper control arm on wheel bearing housing
Brake disc cover plate	(Screws) Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc cover plate
Rear drive shaft to wheel hub	Nut/Item 2/Always replace nut following removal	Tightening torque	460 Nm (340 ftlb.)

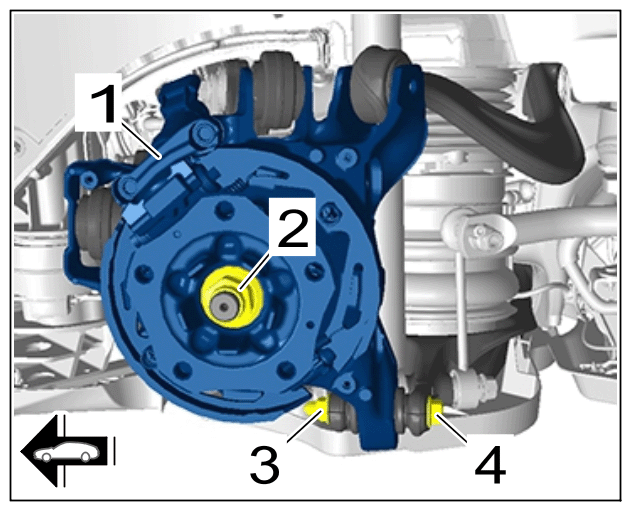

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear wheel bearing housing
