Repairing Antenna Cable In The Left Dashboard Connection Point Area (Antenna Toll)

Detach antenna cable -1- in left dashboard connection point area dashboard (antenna for toll) -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

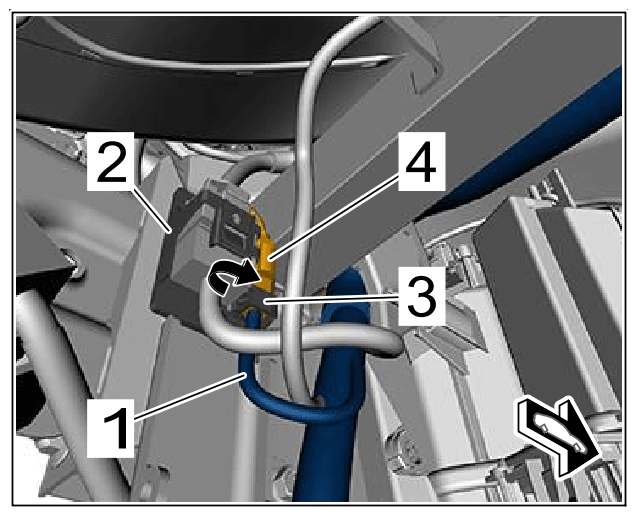

Antenna cable in left dashboard connection point area (antenna toll)
1. 1.1 Open the holder of left dashboard connection point (toll antenna) -3- and unclip electric plug connection to toll antenna cable -4-.
2. 1.2 Unlock and pull off electric plug connection to antenna cable -4- .
3. 1.3 Expose the damaged area of antenna cable -1- in the electrical wire harness.
Repair antenna cable.
> 912841 REPAIRING ANTENNA CABLE
Installation is performed in reverse order. Pay particular attention to the following:
1. 3.1 Push on the electric plug connection until you feel it lock.
