Antenna Cable Topology (Central Computer (PCM) Control Unit To Left Dashboard Connection Point (Reversing Camera))

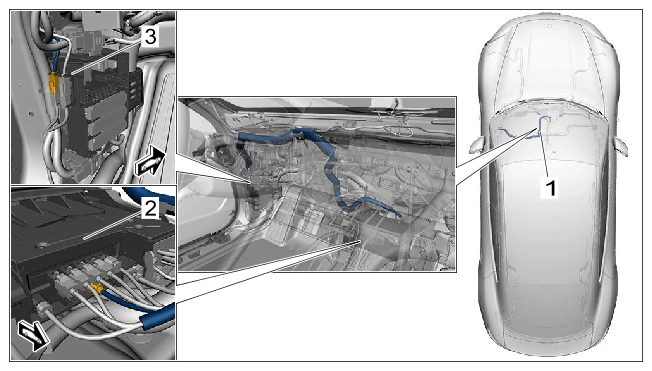

Fig 1: Antenna Cable (Central Computer (PCM) Control Unit To Left Dashboard Connection Point; Reversing Camera) Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna cable (central computer (PCM) control unit to left dashboard connection point (reversing camera))

1	Antenna table (central computer (PCM) control unit to left dashboard connection point (reversing camera))
2	Central computer (PCM) control unit
3	Left dashboard connection point
