Repairing Antenna Cable In The Internet Access Antenna 2 (Rear Shelf Wi-Fi Antenna) Area

If the antenna cable is damaged in an inaccessible area, the area can be replaced with a self-made adapter cable using the special tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

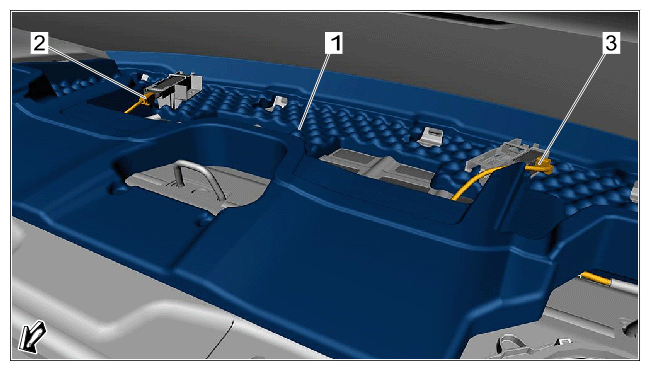

Luggage compartment cover sound absorber

1. 1.1  Unlock and pull off electric plug connection to LTE antenna -2-  .
2. 1.2  Unlock and pull off electric plug connection to Internet access antenna 2 (rear shelf Wi-Fi antenna) -3-  .
3. 1.3  Remove sound absorber for luggage compartment cover -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

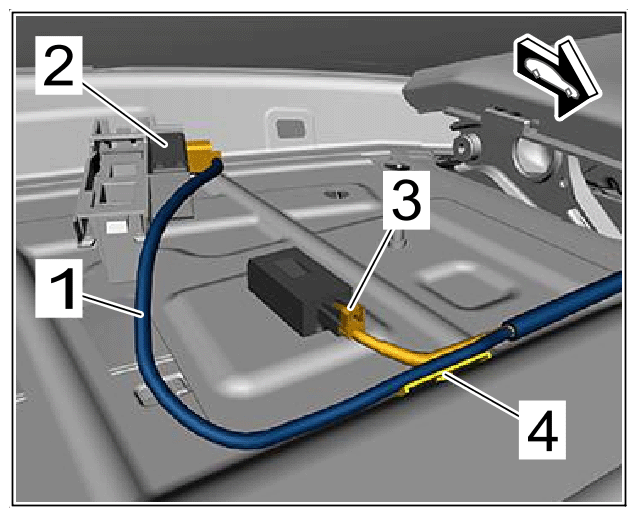

Antenna cable in Wi-Fi rear shelf area

1. 2.1  Unlock and pull off electric plug connection to luggage compartment light -3-  .
2. 2.2  Unclip clip -4-  using a plastic spatula.
3. 2.3  Expose damaged area of antenna cable -1-  in the electrical wire harness.

> 912841 REPAIRING ANTENNA CABLE

1. 4.1  Push on electric plug connection until plug locks perceptibly.
