Subsequent Work

  1. Install heat shield for plenum panel -2-  and screw in clamping washers -1-  .
    G15875165Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing heat shield for plenum panel

  2. Only for Panamera 4S Diesel:

    Install engine cover (design cover).

    > WM, 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)

  3. Only for Panamera 4S:

    Install heat shield for turbocharger.

    > Removing and installing heat shield for turbocharger

  4. Install rear part of front wheel housing liner.

    > WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  5. Fill with coolant.

    > DRAINING AND FILLING COOLANT



  1. Install rear part of front wheel housing liner.

    > 505619 Removing and installing front wheel housing liner

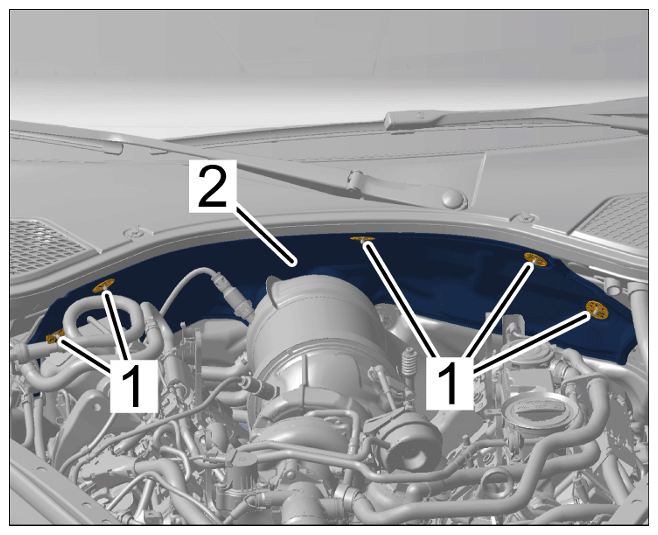

  2. Install heat shield for plenum panel -2-  and screw in clamping washers -1-  .
    G15875174Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing heat shield for plenum panel

  3. Install rear seal on front lid.

    > 553319 REMOVING AND INSTALLING FRONT LID SEAL

  4. Install the engine.

    > 100119 Removing and installing engine - section on  "INSTALLING "
