Installing (Rear) Sun Blind Motor

1. Align the sun blind so that it is parallel.
   1. 1.1 Set the same distance -a-  between the front edge of the sun blind -1-  and the sun blind module on both sides.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Aligning sun blind

   Information

   Do not continue to turn the motor after inserting the pinion into the drive cables because if you do, the control bolts will move closer together.

2. Position motor for sun blind -1-  in installation position and screw in and tighten screws -2-  > Tightening torque 3 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

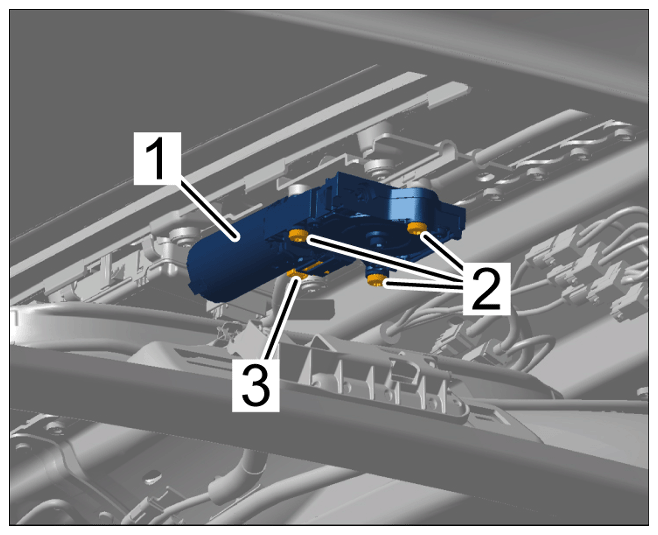

   Installing motor for sun blind

3. Plug in electric plug connection -3-  until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting electric plug connection
