Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...

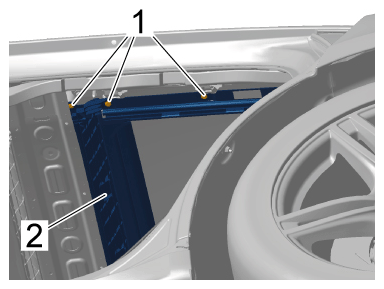

Screws for rear roof sun blind mechanism	Item 1	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear sun blind mechanism

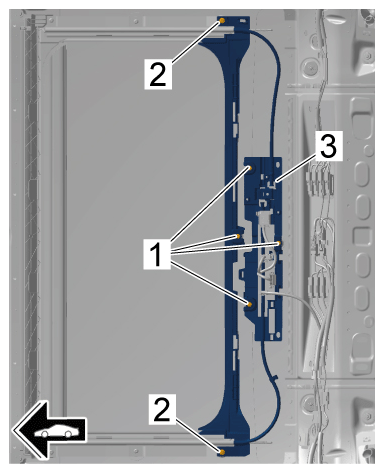

Screws for bracket for rear roof sun blind motor	Item 1	Tightening torque	2.5 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for motor
Screws on mechanism for bracket for rear roof sun blind motor	Item 2	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for motor
