Removing Rear Roof Sun Blind

Information

• Some of the repair illustrations show only one side of the vehicle.
• Also complete certain steps on the opposite side of the vehicle as well.

1. Unclip rear roof sun blind.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

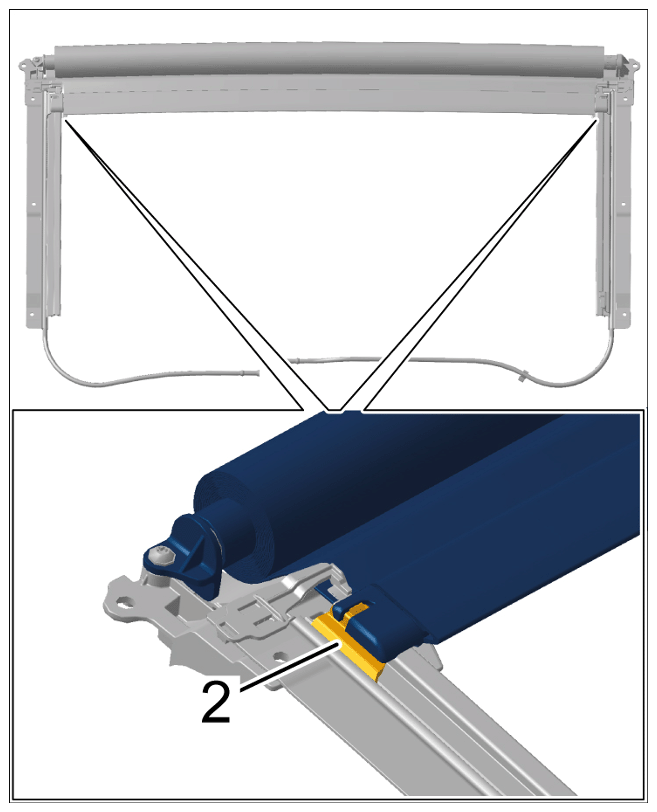

   Unclipping rear roof sun blind

   1. 1.1 Carefully lift up the clip -2-  using a screwdriver.
   2. 1.2 Press roof strut forward.
2. Pull rear roof sun blind forward manually > Length 300 mm  .

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information on locking sun blind

   • When the locking pin is removed, the spring becomes loose and the sun blind -1- must be replaced.
3. Lock rear roof sun blind -1-  using > T40011 - locking pin  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

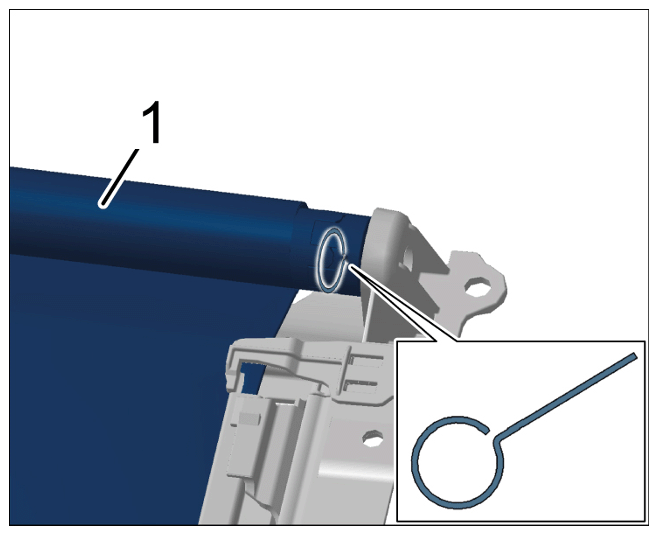

   Locking sun blind

4. Remove guide element.
   1. 4.1 Disengage reinforced guide for sun blind -3-  from guide element -4-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

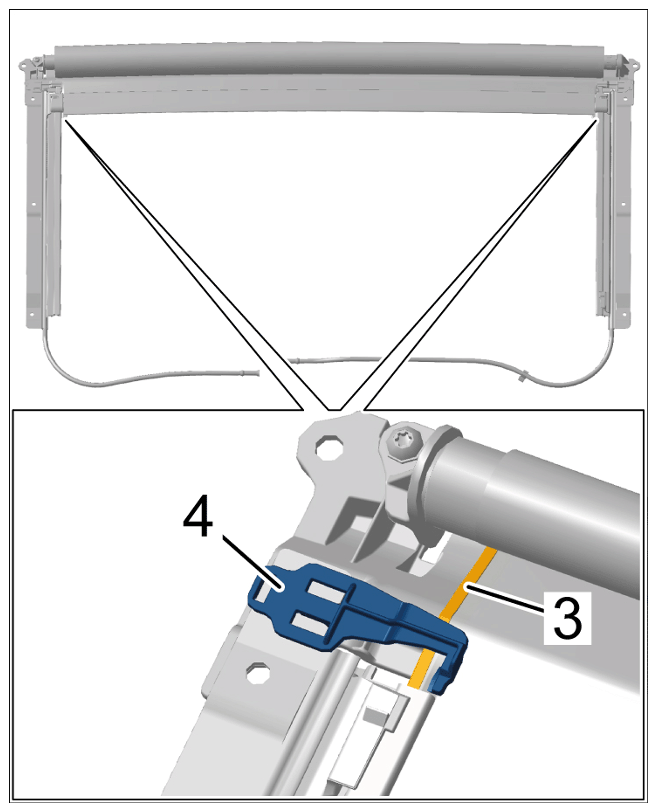

      Disengaging reinforced guide for sun blind from guide element

   2. 4.2 Unclip guide element -4-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

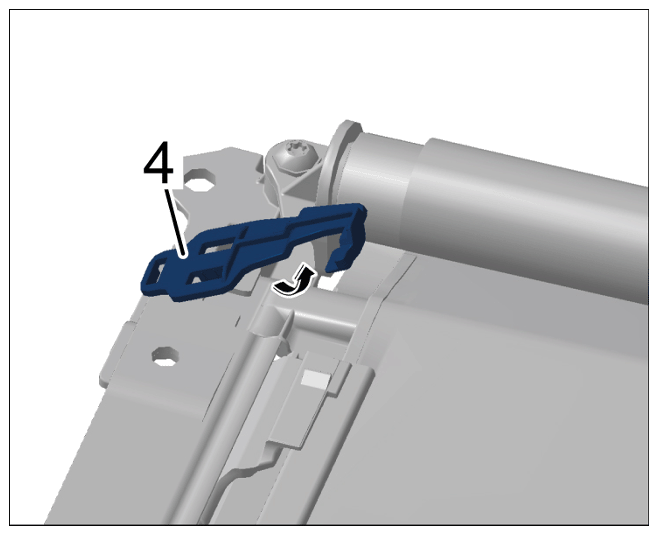

   Unclipping guide element

5. Disengage reinforced guide for sun blind -3-  from guide rail -5-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

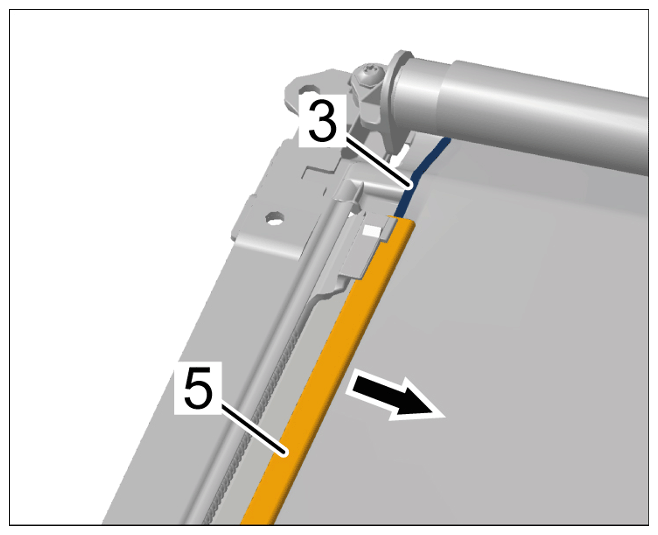

   Disengaging tab on sun blind from guide rail

6. Unscrew and remove screw -6-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screw

7. Lift rear roof sun blind -1-  from the mounting -arrow-  and remove it from the frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

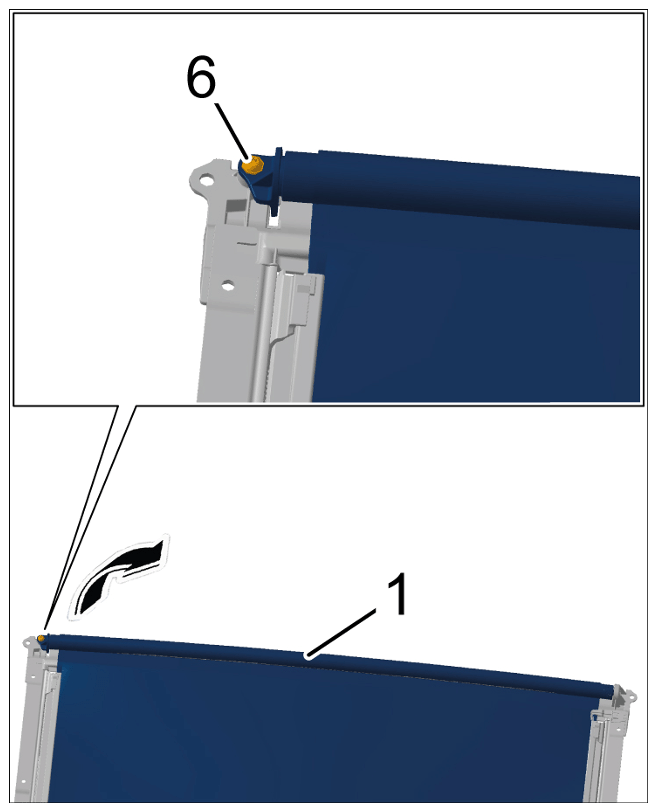

Removing rear roof sun blind
