Overview Of Water Drains

Information

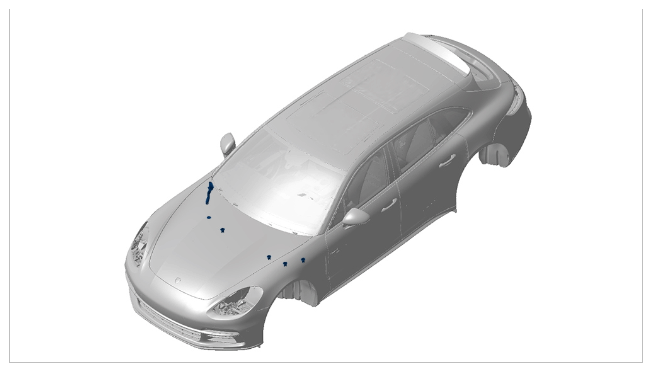

The following overview serves as a guide to the installation positions of the water drains on the sliding roof or convertible top and plenum panel. Add-on parts in the area are not shown for the sake of clarity.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of water drains

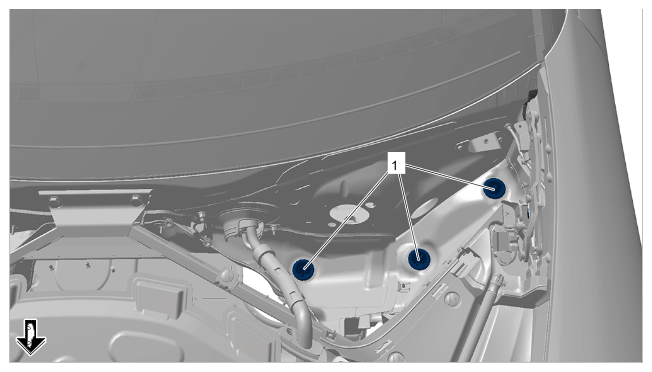

Fig 1: Plenum Panel Water Drain Component Location (Right)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plenum panel water drain (right)

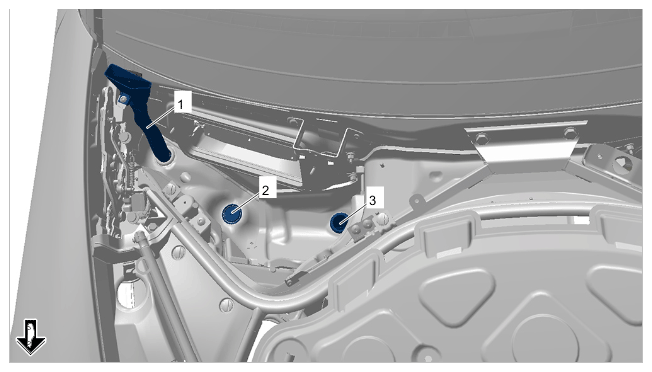

Fig 2: Plenum Panel Water Drain Component Location (Left)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plenum panel water drain (left)
