Checking Water Drains At The Front

1. Find the installation position of the front water drains.

   > 6048IN WATER DRAIN

2. Remove front cover -1-  .

   > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

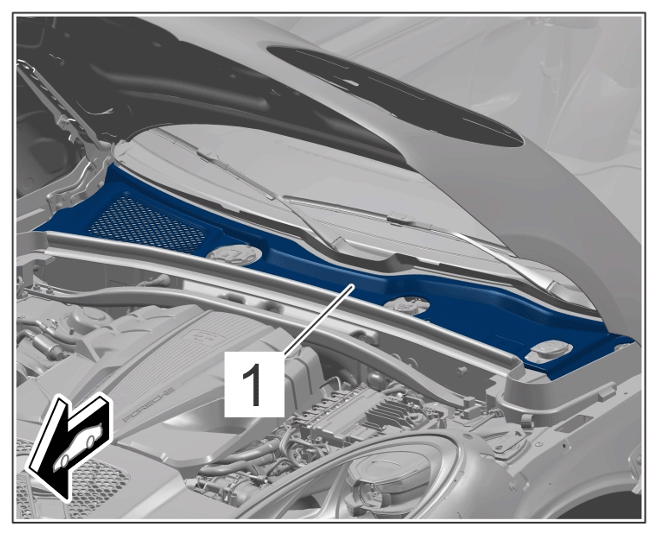

   Front cover (shown on the Macan)

3. Check for dirt in the area around the water drains -1-  at the front and remove it if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Area around water drains (shown on the Macan)

4. Install front cover -1-  .

   > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover (shown on the Macan)
